PS6500 Hardware Maintenance Maintaining Disk Drives
2-5

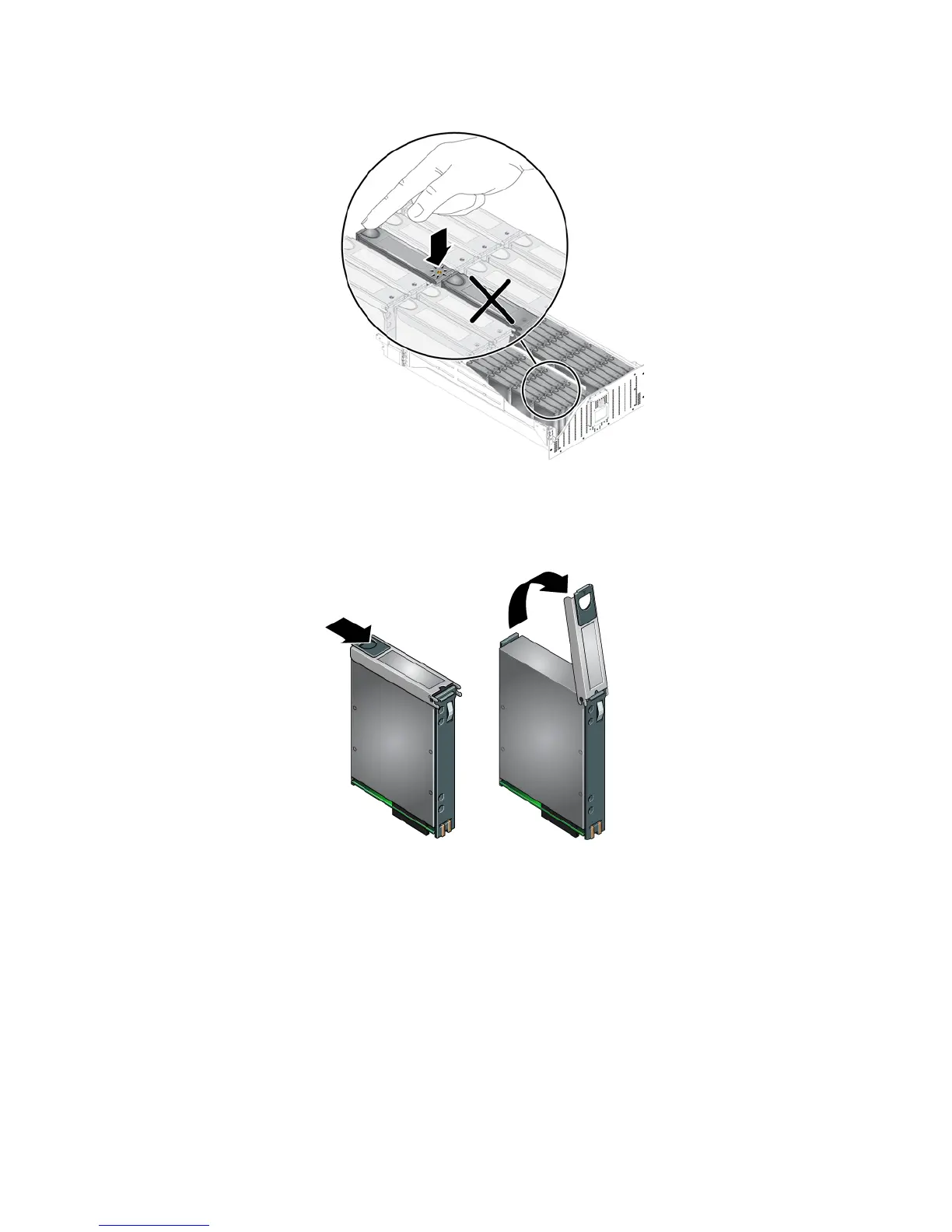

Figure 2-5: Identifying and Removing the Correct Drive
6. Open the disk drive release lever by sliding the latch toward the front of the array and pulling up the latch arm.
This will disengage the disk drive from the slot.
7. Wait 30 seconds to allow the disk drive to stop spinning and the heads to land.
