PS6500 Hardware Maintenance Maintaining Power Supply and Cooling Modules
4-2
Power Supply and Cooling Module Status
You can identify a failure on a power supply and cooling module by:
• LEDs. The power supply and cooling module hardware status LED is orange or flashing orange. In addition,
an LED on a power supply and cooling module is orange. See Power Supply and Cooling Module LEDs on
page 4-1.
• Messages. A message on the LCD panel (located behind the bezel), on the console, in the event log, or in the
Group Manager GUI Alarms panel describes a power supply and cooling module failure.
• Group Manager GUI and CLI output. The Member Enclosure window or the
member select show
enclosure
command output shows a power supply and cooling module failure.
When facing the rear of the array, power supply and cooling modules are numbered 0, 1, and 2 from left to right.
See Figure 1-9.
Array Behavior When a Power Supply Fails
If one power supply and cooling module fails, the array will continue to operate as long as two modules are
functioning and connected to power. Otherwise, the array will shut down automatically.
If a power supply and cooling module fails, contact your PS Series support provider for a replacement.

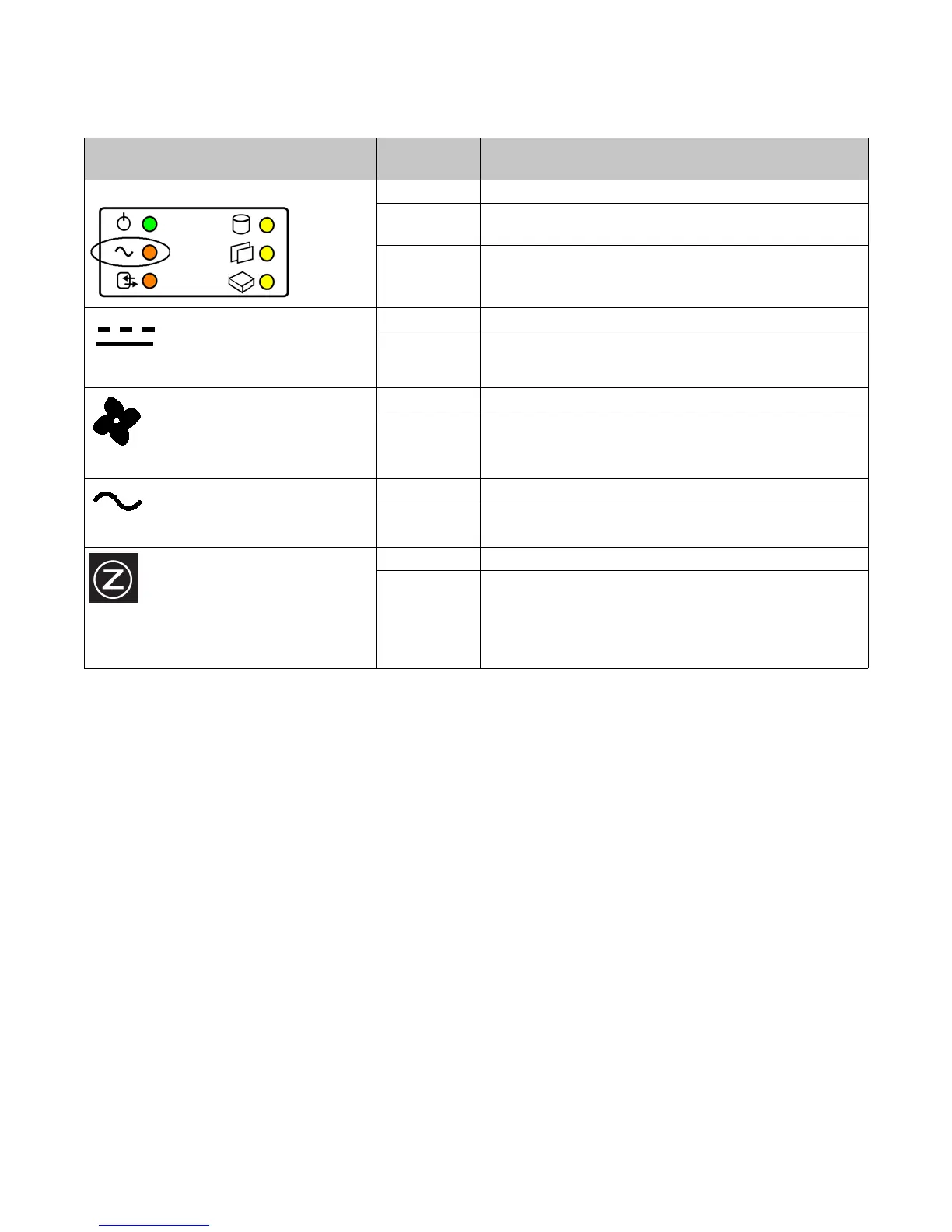

Table 4-1: Power Supply and Cooling Module LED Descriptions
Power Supply and Cooling Module
LED
Color Description
Power/fan LED on array front panel. Off Normal operation.
Flashing
orange
Module removed.
Orange Power supply failure, fan failure, or upper or lower
temperature limit exceeded.
See Figure 4-2.
Off Normal operation.
Orange DC power failure.
See Figure 4-2.
Off Normal operation.
Orange Fan failure.
See Figure 4-2.
Off Normal operation.
Orange AC power failure.
See Figure 4-2.
Off No power.
Green Normal operation.
After you replace a failed power supply, power supply
initialization may be in progress even if the LED is green.
Initialization is complete when the failure condition is
cleared in the LCD panel.
