PS6500 Hardware Maintenance Maintaining Disk Drives
2-9

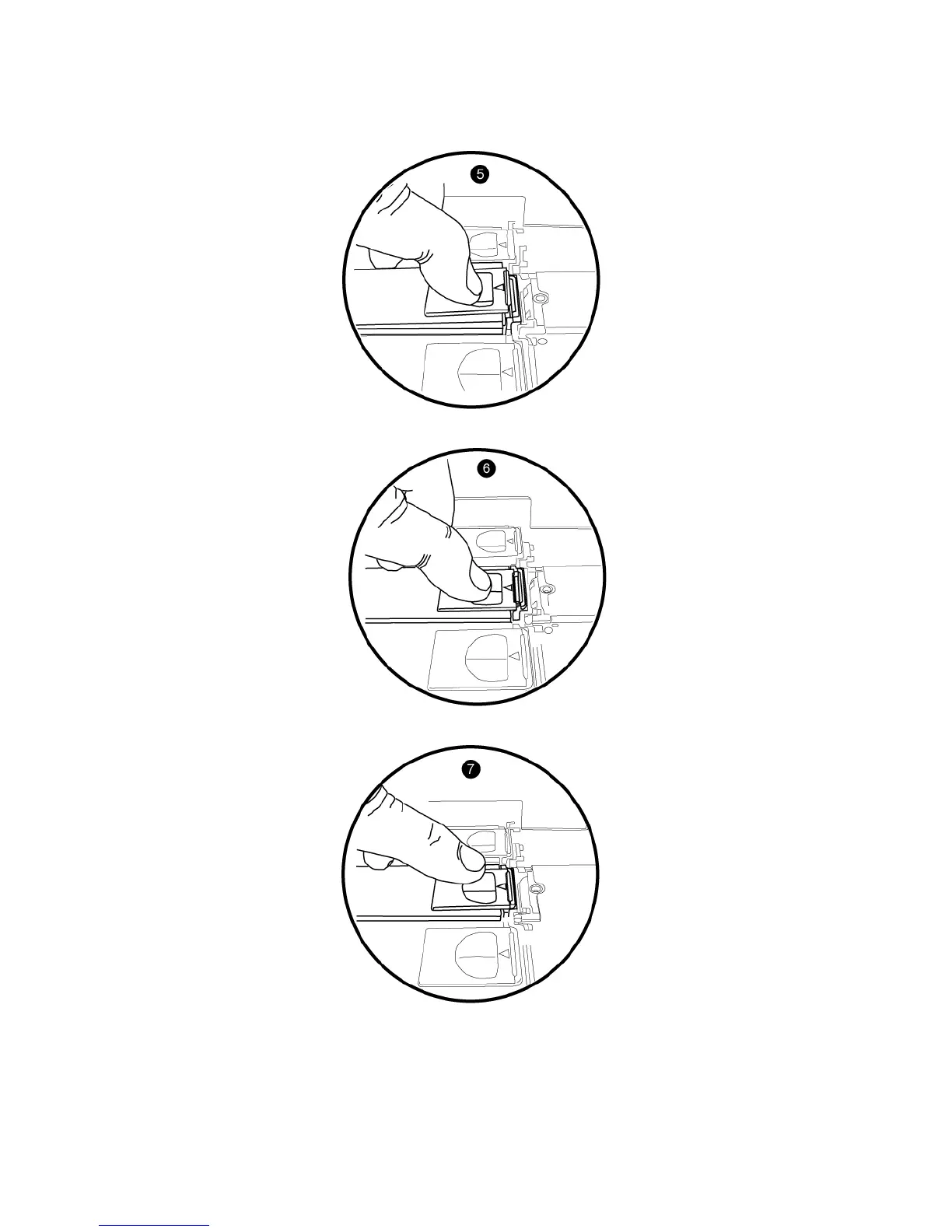

f. Holding the latch open, lower the lever until the drive is fully seated and flush with the other drives (5).
Keep holding the latch open.
g. Push the latch forward (6).
h. Make sure it engages with the slot in the drive carrier (7).
9. Close and lock the chassis cover. See Opening and Closing the Chassis Cover on page 1-9.
10. Reinstall the bezel. See Removing and Installing the Bezel on page 1-8.
Make sure the new disk drive is operational. See Disk Drive Status on page 2-2 for more information.
