PS6500 Hardware Maintenance Maintaining Control Modules
3-5
To remove a control module:
1. Open the control module latches by squeezing together the release mechanism for each latch and then rotating
each latch outwards.This will disengage the control module from the array. See Figure 3-3.

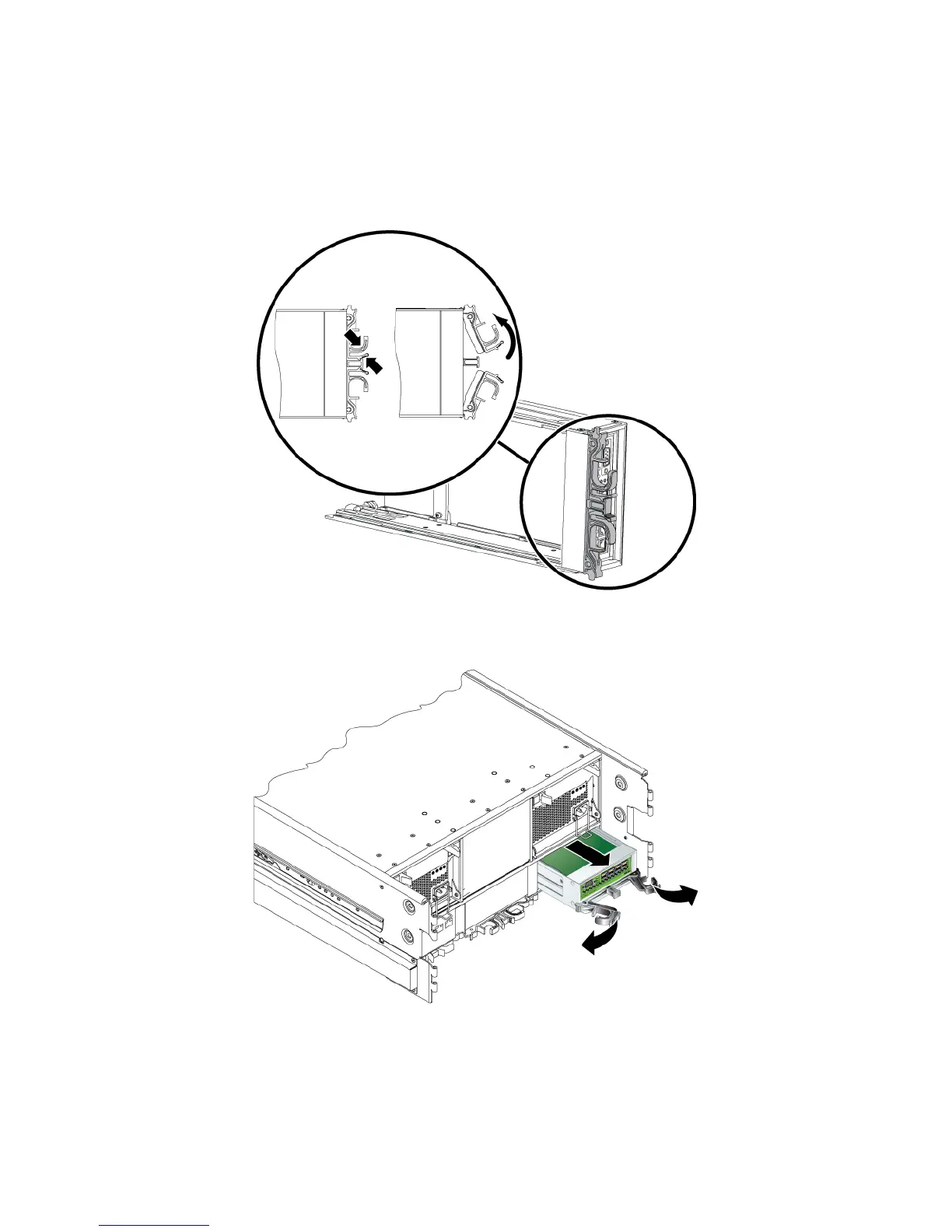

Figure 3-3: Opening a Control Module Latch
2. Hold the latches and carefully slide the control module from the slot. See Figure 3-4.
Figure 3-4: Removing a Control Module
3. Place the control module on a flat surface where it will be protected from electrostatic charge.
Caution: To avoid damage, do not place anything on top of the control module.
