Dell Force10 S4810P - Four-post Threaded Configuration

Installing the S4820T | 27
Four-post Threaded Configuration
1 For this configuration, you must remove the flange ear castings from each end of the ReadyRails
assemblies. Use a Torx driver to remove the two screws from each flange ear and remove each
casting. Refer to
Figure 4-4 , step 1. Retain the castings for future rack requirements.
2 For each rail, attach the front and rear flanges to the post flanges with two user-supplied screws at
each end. Refer to
Figure 4-4 , step 2.

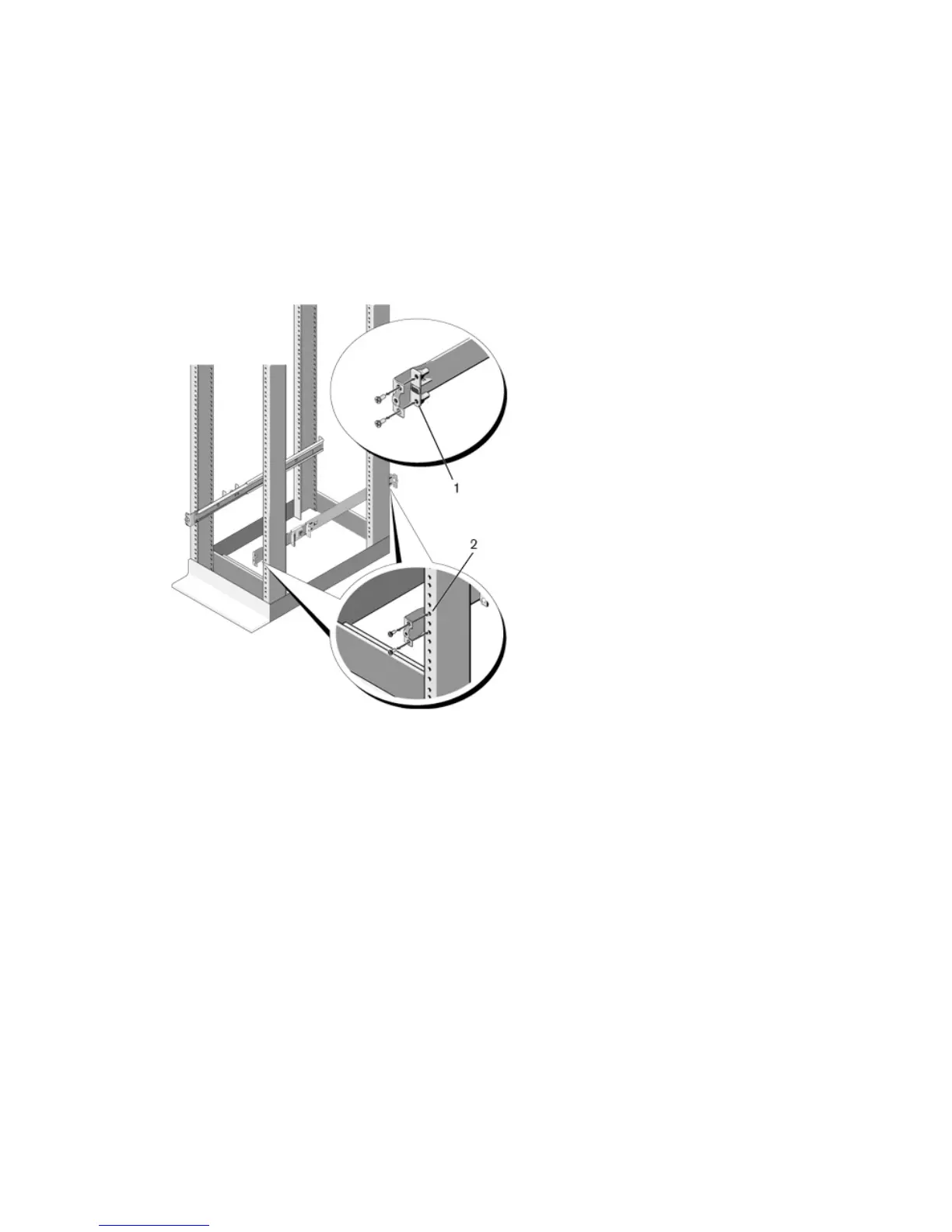

Figure 4-4. Four-post Threaded Configuration
