Removing and installing components
NOTE: The images in this document may differ from your computer depending on the configuration you ordered.
Recommended tools
The procedures in this document may require the following tools:
● Phillips screwdriver #0 and #1
● T6 Torx screwdriver (for 2-in-1s with WWAN support)
● Plastic scribe
Screw list
NOTE: When removing screws from a component, it is recommended to note the screw type, the quantity of screws, and
then place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type is
restored when the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surfaces when
replacing a component.
NOTE: Screw color may vary with the configuration ordered.

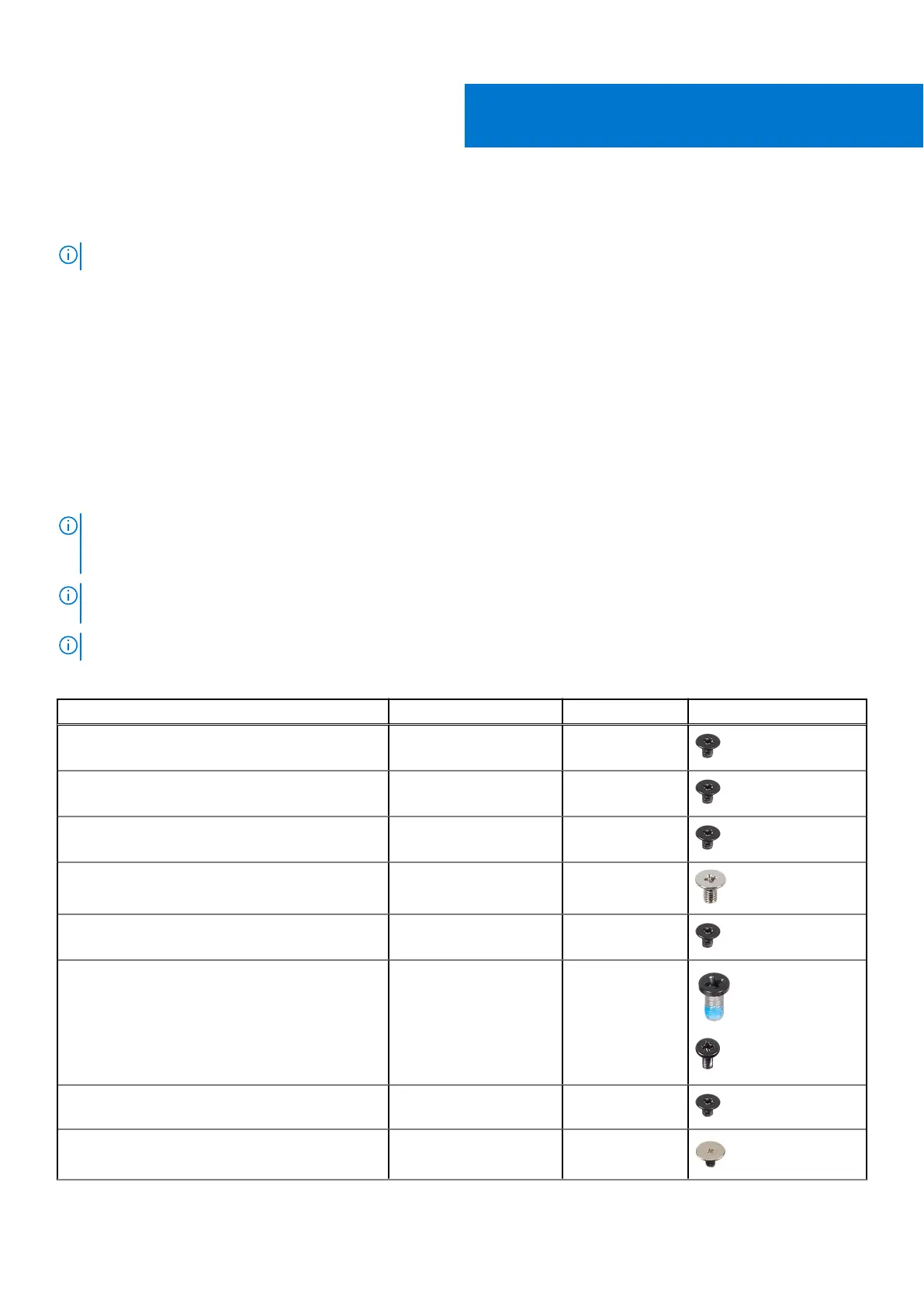

Table 1. Screw list
Component Screw type Quantity Image
3-cell battery M2x3 2
4-cell battery M2x3 5
Audio board M2x3 2
WWAN card M2x3 2
Solid-State Drive M2x3 12
Display assembly M2.5x5
M2x4
6
1
Display bezel (Laptop) M2.5x3.8 4
Display-cable bracket M2x3 1
2
Removing and installing components 9
