Dell Latitude 7390 2-in-1 User Manual

c Base cover
d Battery

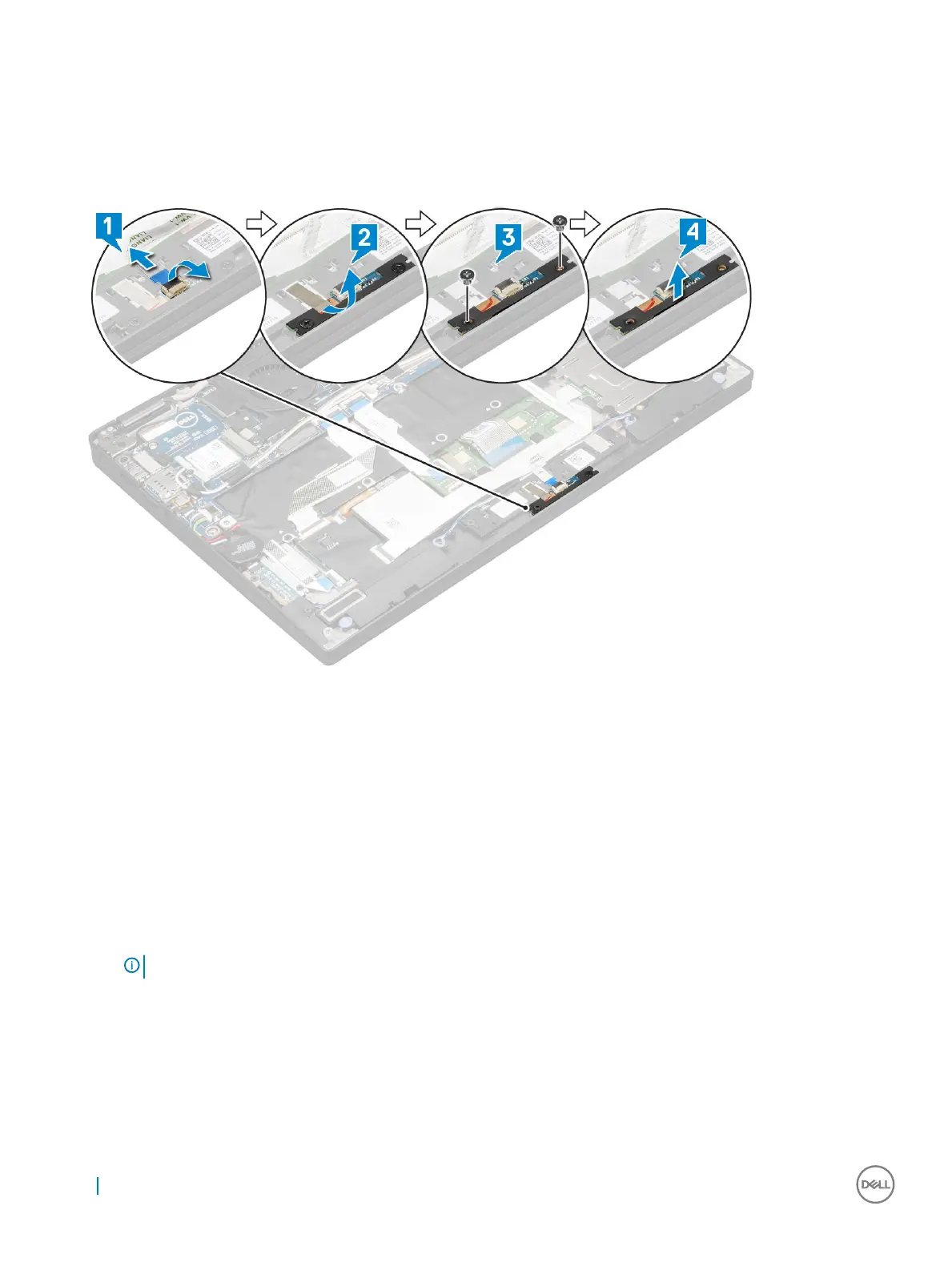

3 To remove the LED board:
a Disconnect the LED board cable from the LED board [1].
b Remove the tape that secures the LED board to the touchpad panel [2].
c Remove the 2 (M2 x 3) screws that secure the LED board on the computer [3].
d Lift the LED board from the computer [4].
Installing the LED board
1 Install the LED board into the slot.
2 Replace the 2 (M2 x 3) screws to secure the LED board.
3 Ax the tape to secure the LED board.
4 Connect the LED board cable to the LED board.
5 Install the:
a Battery
b Base cover
c SIM card tray
d MicroSD card
NOTE
: To install both cards if equipped.
6 Follow the procedure in After working inside your computer.
Heat Sink
22
Removing and installing components

Dell Latitude 7390 2-in-1 Specifications

General

Graphics	Intel UHD Graphics 620
Operating System	Windows 10 Pro
Processor	8th Generation Intel Core i5/i7
Display	13.3-inch FHD (1920 x 1080) touch screen
RAM	8GB or 16GB LPDDR3
Storage	Up to 1TB PCIe SSD
Battery	4-cell 60Whr
Weight	1.42 kg (3.12 lbs)
Ports	1 x microSD card reader, 1 x headphone/microphone combo jack
Wireless	Intel Dual Band Wireless-AC 8265, Bluetooth 4.2
Webcam	720p
