Dell Latitude 7390 2-in-1 User Manual

c SIM card tray
d MicroSD card
NOTE: To install both cards if equipped.
6 Follow the procedure in After working inside your computer.
Display Assembly
Removing the display assembly
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a Micro SD
b SIM card tray
NOTE: To remove both cards if equipped and no need to remove the blank ller
c Base cover
d Battery
e WLAN card
f WWAN card

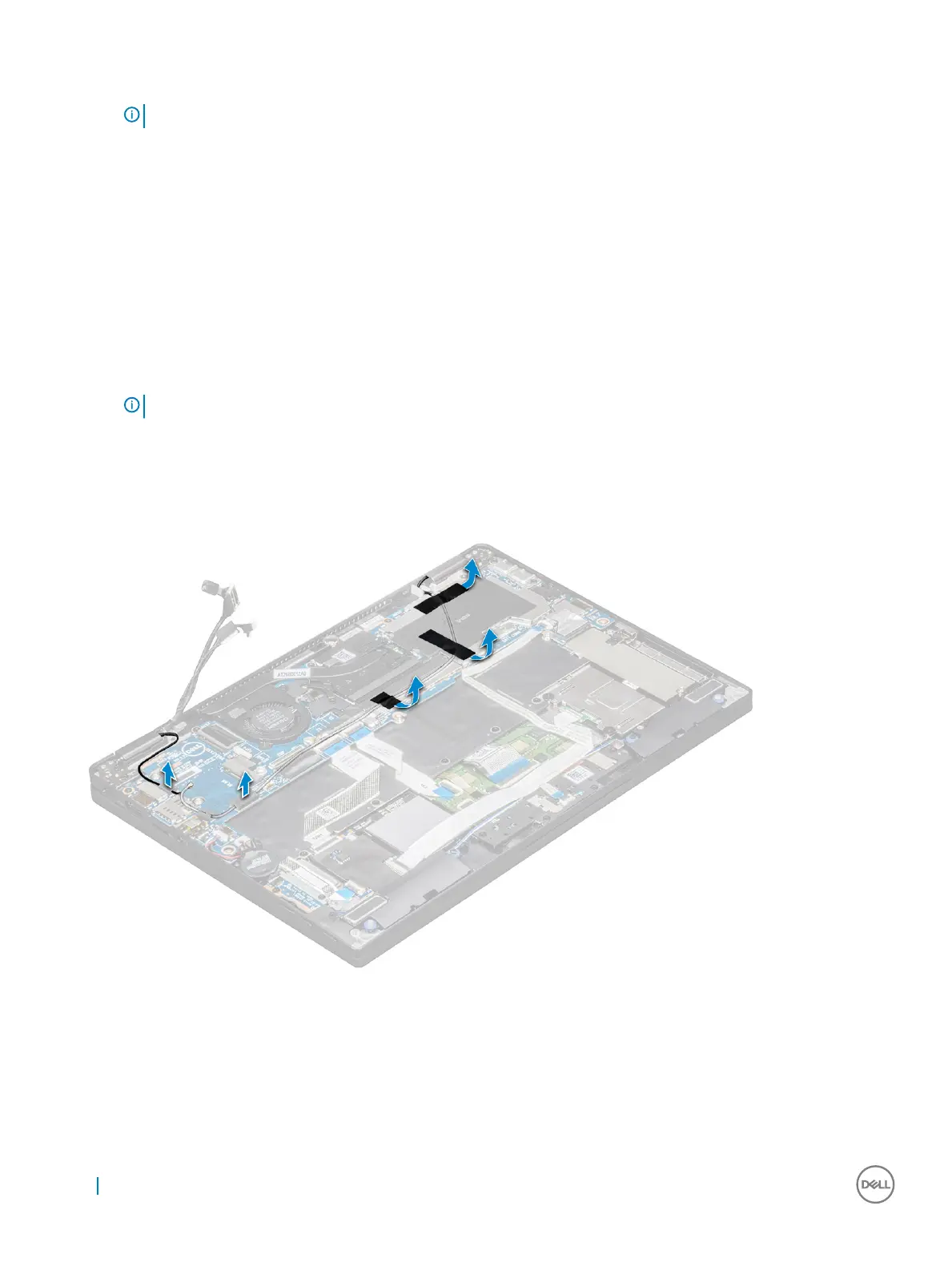

3 Peel the tapes that secure the antenna cables to the system board and remove the cables from the routing clips.
4 Disconnect the :
a IR camera and touchscreen cable [1].
b Remove the 2 (M 2 x 1.7L) screws that secure the eDP bracket and lift it away from the computer [2].
c Disconnect the eDP cable from the system board [3].
d Disconnect the G-sensor and eDP cables [4].
24
Removing and installing components

Dell Latitude 7390 2-in-1 Specifications

General

Graphics	Intel UHD Graphics 620
Operating System	Windows 10 Pro
Processor	8th Generation Intel Core i5/i7
Display	13.3-inch FHD (1920 x 1080) touch screen
RAM	8GB or 16GB LPDDR3
Storage	Up to 1TB PCIe SSD
Battery	4-cell 60Whr
Weight	1.42 kg (3.12 lbs)
Ports	1 x microSD card reader, 1 x headphone/microphone combo jack
Wireless	Intel Dual Band Wireless-AC 8265, Bluetooth 4.2
Webcam	720p
