Dell Latitude 7390 2-in-1 User Manual

Removing keyboard from the keyboard tray
1 Follow the procedure in Before working inside your computer.
2 Remove the Keyboard

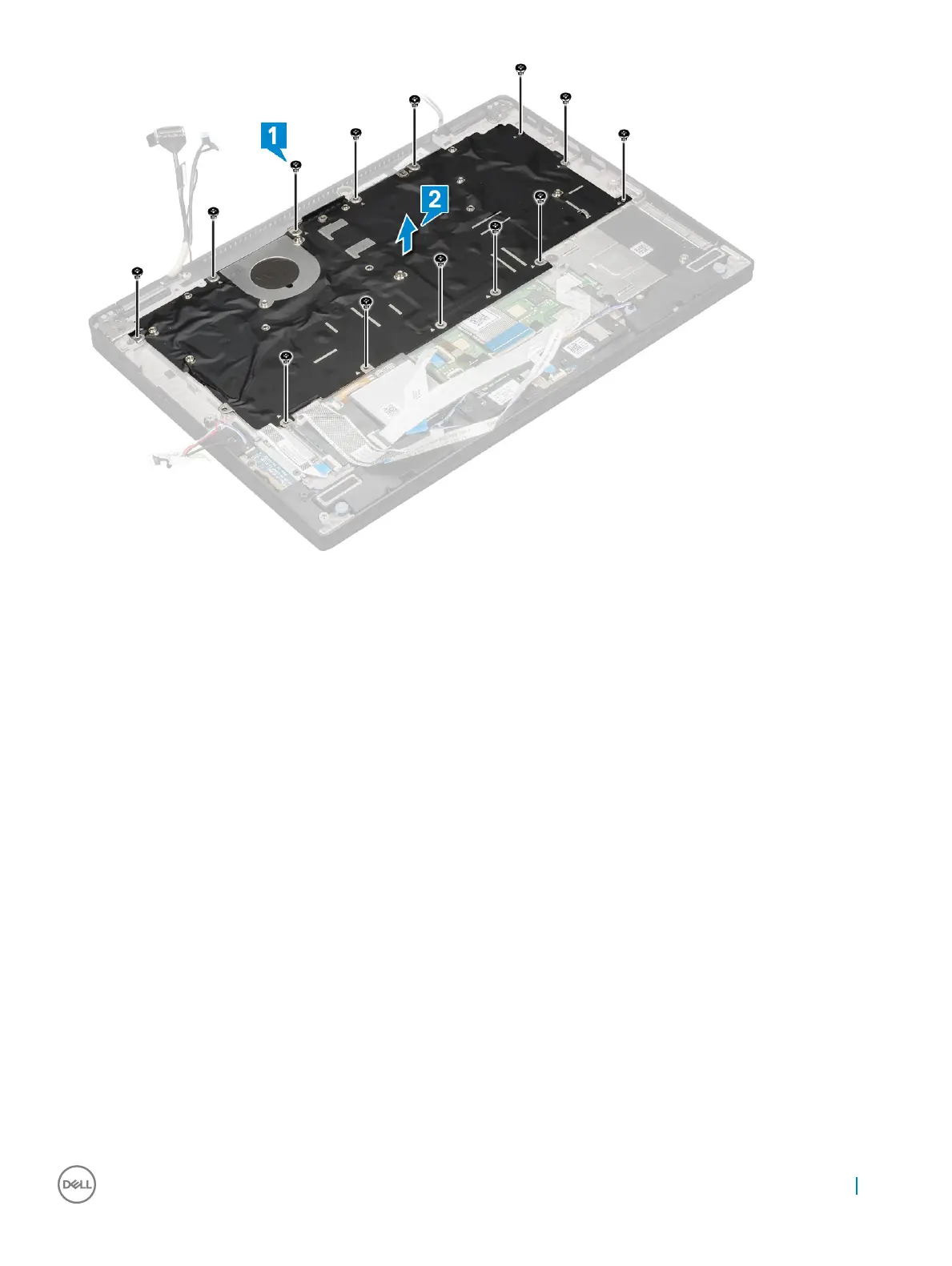

3 Remove the keyboard from the keyboard support tray:
a Remove the 6 (M2.0 x 2.0) screws that secure the keyboard to the keyboard assembly [1].
b Lift the keyboard away from the keyboard support tray [2].
Removing and installing components
33

Dell Latitude 7390 2-in-1 Specifications

General

Graphics	Intel UHD Graphics 620
Operating System	Windows 10 Pro
Processor	8th Generation Intel Core i5/i7
Display	13.3-inch FHD (1920 x 1080) touch screen
RAM	8GB or 16GB LPDDR3
Storage	Up to 1TB PCIe SSD
Battery	4-cell 60Whr
Weight	1.42 kg (3.12 lbs)
Ports	1 x microSD card reader, 1 x headphone/microphone combo jack
Wireless	Intel Dual Band Wireless-AC 8265, Bluetooth 4.2
Webcam	720p
