NOTE: SIM Card tray is available only if your computer is shipped with a WWAN card.
c Base cover
d Battery
e SSD card
f WLAN card
g WWAN card
h Heatsink assembly
i System board

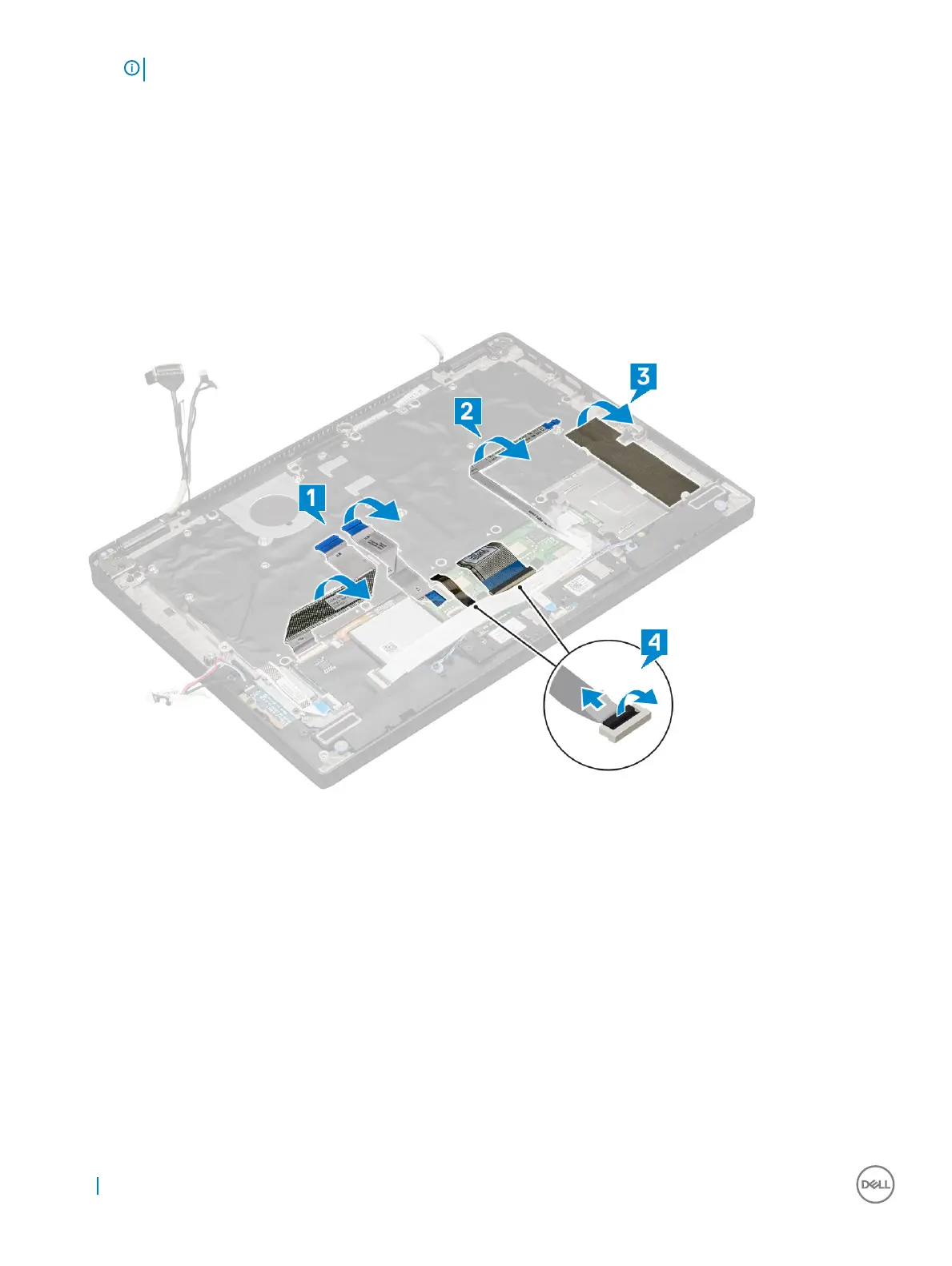

3 disconnect and peel back the cables and SSD thermal pad:
a Touchpad and USH board cable [1]
b LED board cable [2]
c SSD thermal pad [3]
d Keyboard and keyboard backlit cable [4]
4 To remove the keyboard:
a Remove the 13 (M2.0 x 3.0) screws that secure the keyboard to the chassis [1].
b Lift the keyboard from the chassis [2].
32
Removing and installing components

Dell Latitude 7390 2-in-1 Specifications

General

Graphics	Intel UHD Graphics 620
Operating System	Windows 10 Pro
Processor	8th Generation Intel Core i5/i7
Display	13.3-inch FHD (1920 x 1080) touch screen
RAM	8GB or 16GB LPDDR3
Storage	Up to 1TB PCIe SSD
Battery	4-cell 60Whr
Weight	1.42 kg (3.12 lbs)
Ports	1 x microSD card reader, 1 x headphone/microphone combo jack
Wireless	Intel Dual Band Wireless-AC 8265, Bluetooth 4.2
Webcam	720p
