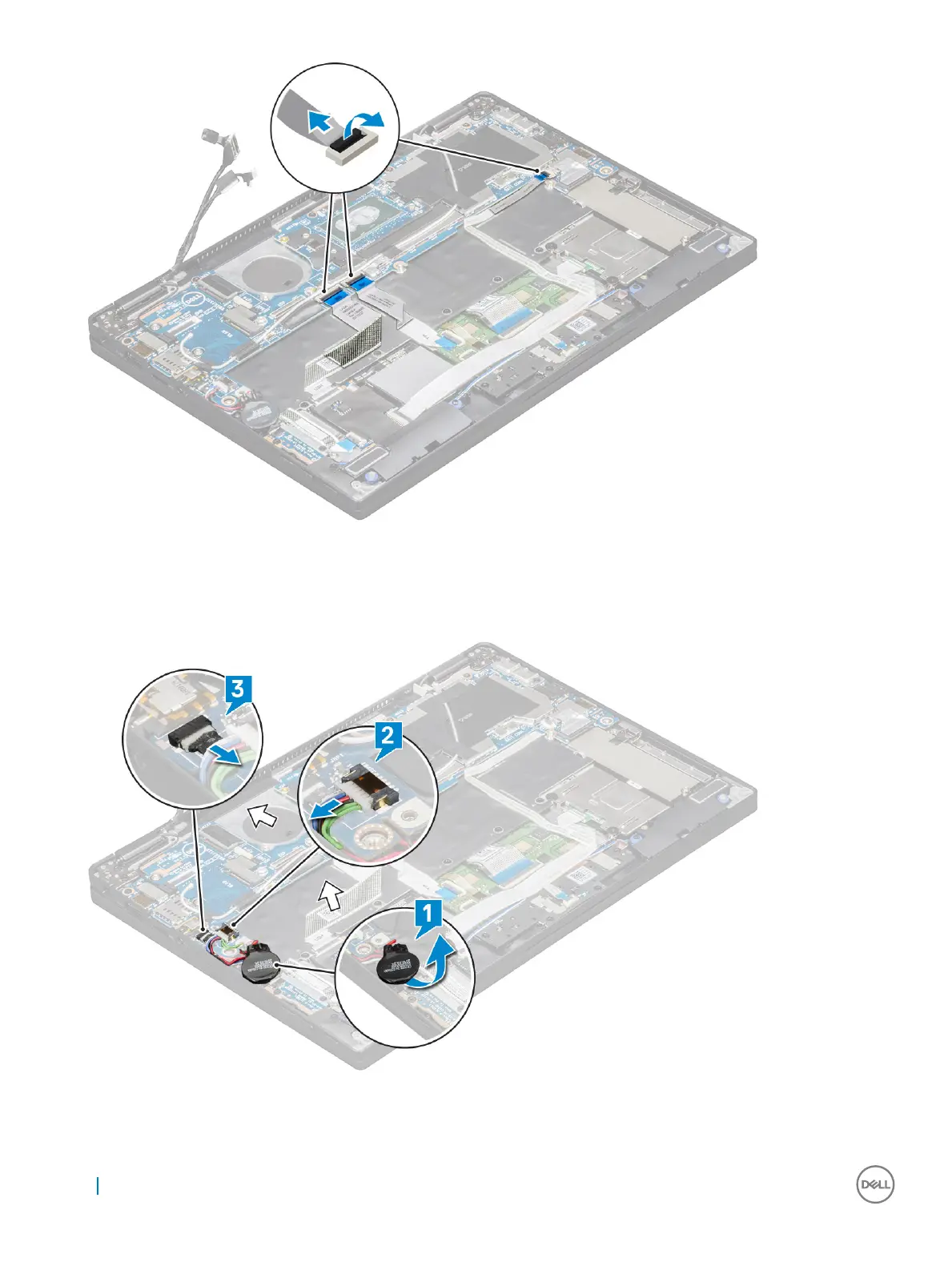

5 To release the cables:
a Flip the coin cell battery to reveal the speaker cable [1].
b Disconnect the speaker cable from the system board [2].
c Disconnect the power board cable from the system board [3].
6 Peel the tapes that secure antenna cables and remove the cables from the routing clips.
28
Removing and installing components

Dell Latitude 7390 2-in-1 Specifications

General

Graphics	Intel UHD Graphics 620
Operating System	Windows 10 Pro
Processor	8th Generation Intel Core i5/i7
Display	13.3-inch FHD (1920 x 1080) touch screen
RAM	8GB or 16GB LPDDR3
Storage	Up to 1TB PCIe SSD
Battery	4-cell 60Whr
Weight	1.42 kg (3.12 lbs)
Ports	1 x microSD card reader, 1 x headphone/microphone combo jack
Wireless	Intel Dual Band Wireless-AC 8265, Bluetooth 4.2
Webcam	720p
