Dell Latitude E6410 - Display Panel Removal and Replacement

Back to Removing and Replacing Parts

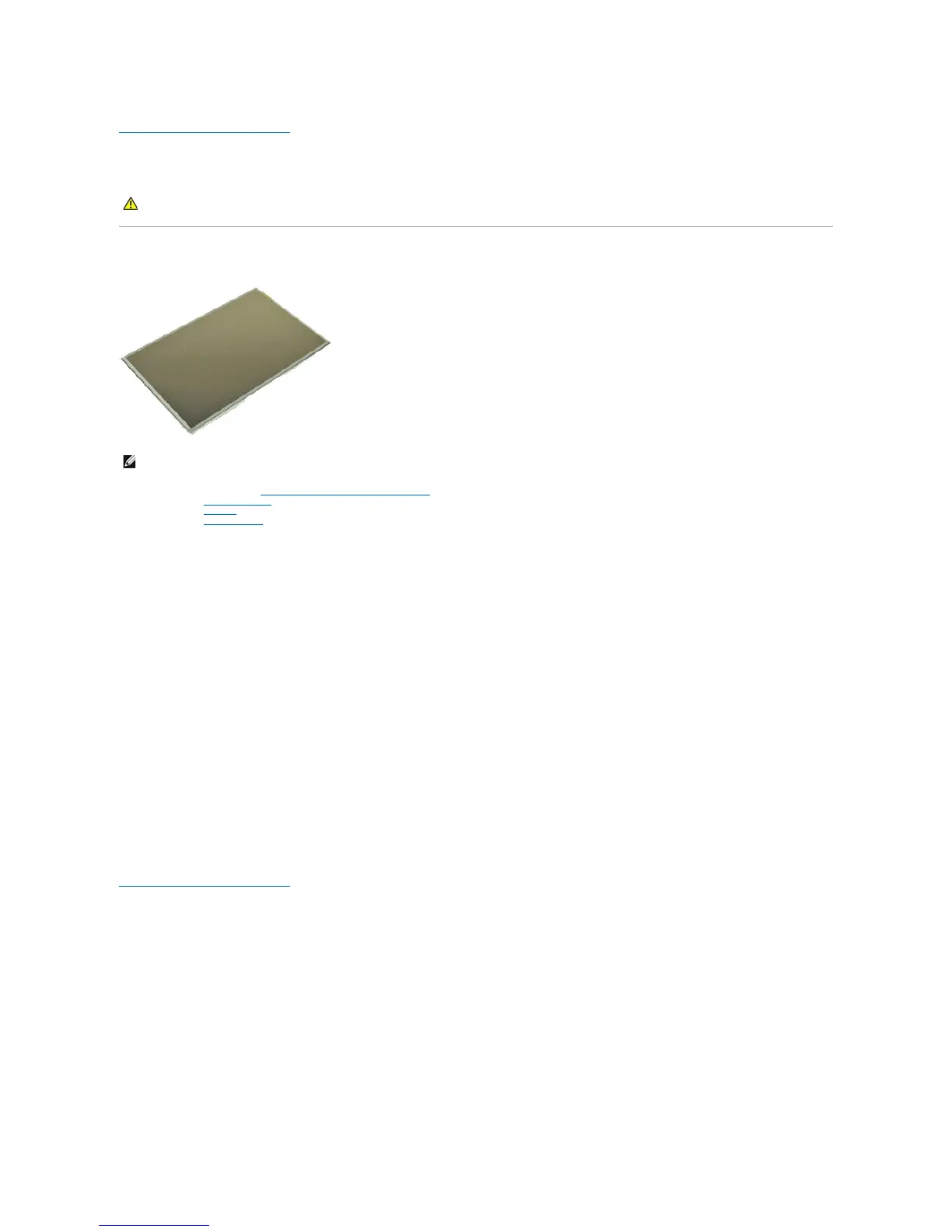

Display Panel
Dell™Latitude™E6410/E6410ATGServiceManual
Removing the Display Panel
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the ATG Port Cover (applicable on E6410 ATG computer only).
3. Remove the battery.
4. Remove the Display Bezel.
5. Remove the screws that secure the display panel to the display assembly.
6. Remove the display panel from the top cover and lay it face down on the palm rest.
7. Disconnect the touch screen cable (1), and EDP cable (2), from the LCD panel.
8. Disconnect the touch screen cable if present.
9. Remove the display panel.
10. Remove the screws that secure the left display bracket to the display panel.
11. Remove the screws that secure the right display bracket to the display panel.
Replacing the Display Panel
To replace the display panel, perform the above steps in reverse order.
Back to Removing and Replacing Parts
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
NOTE: You may need to install Adobe®Flash®Player from Adobe.com in order to view the illustrations below.
