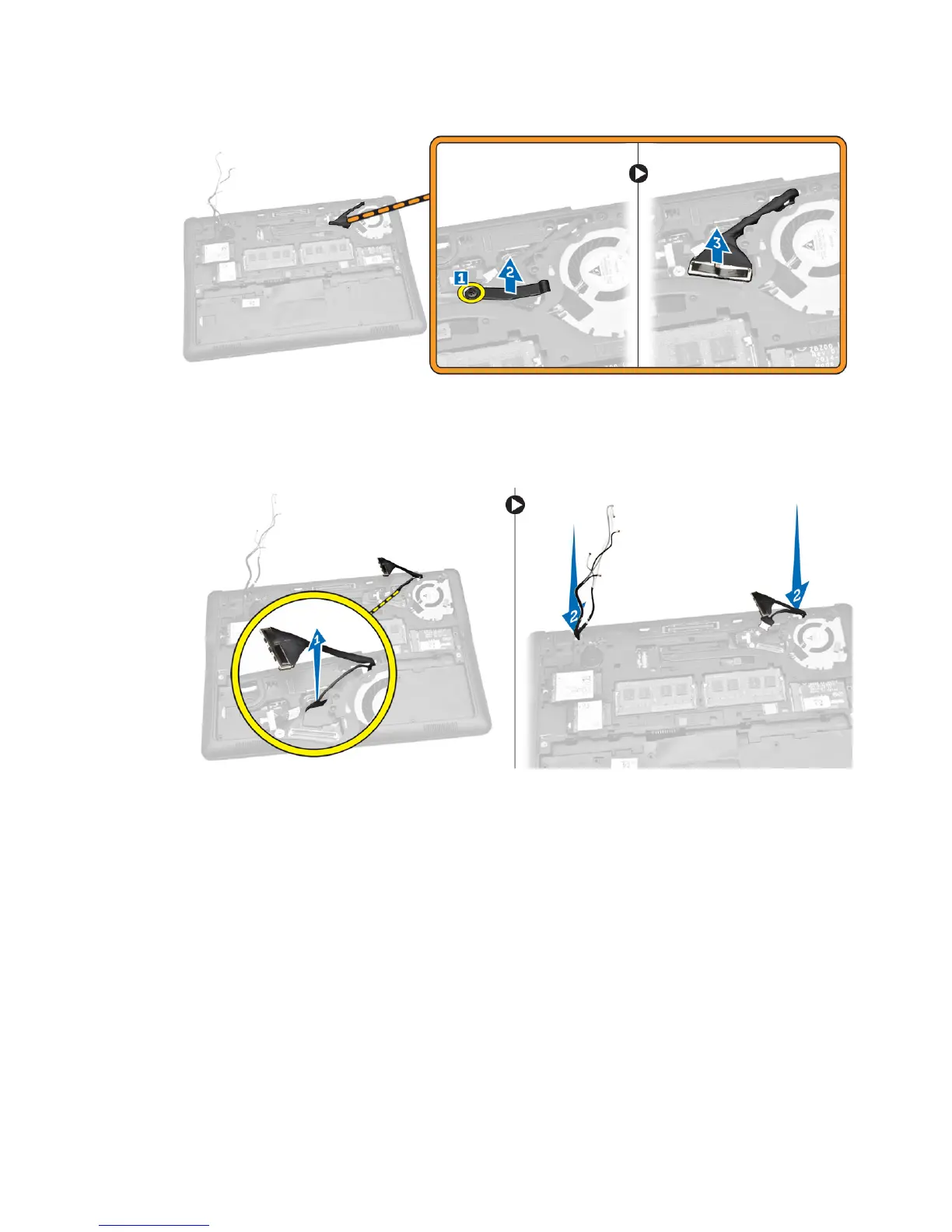

6. Perform the following steps as shown in the illustration:
a. Unroute the cable from the slot [1].
b. Pull the antenna cables from the holes on the base chassis that secure the display assembly to
the computer [2].
7. Perform the following steps as shown in the illustration:
a. Remove the screws that secure the display assembly to the computer [1].
b. Lift the display assembly from the computer [2].
23
