Dell Networking N4000 Series Getting Started Guide

Hardware Overview 11

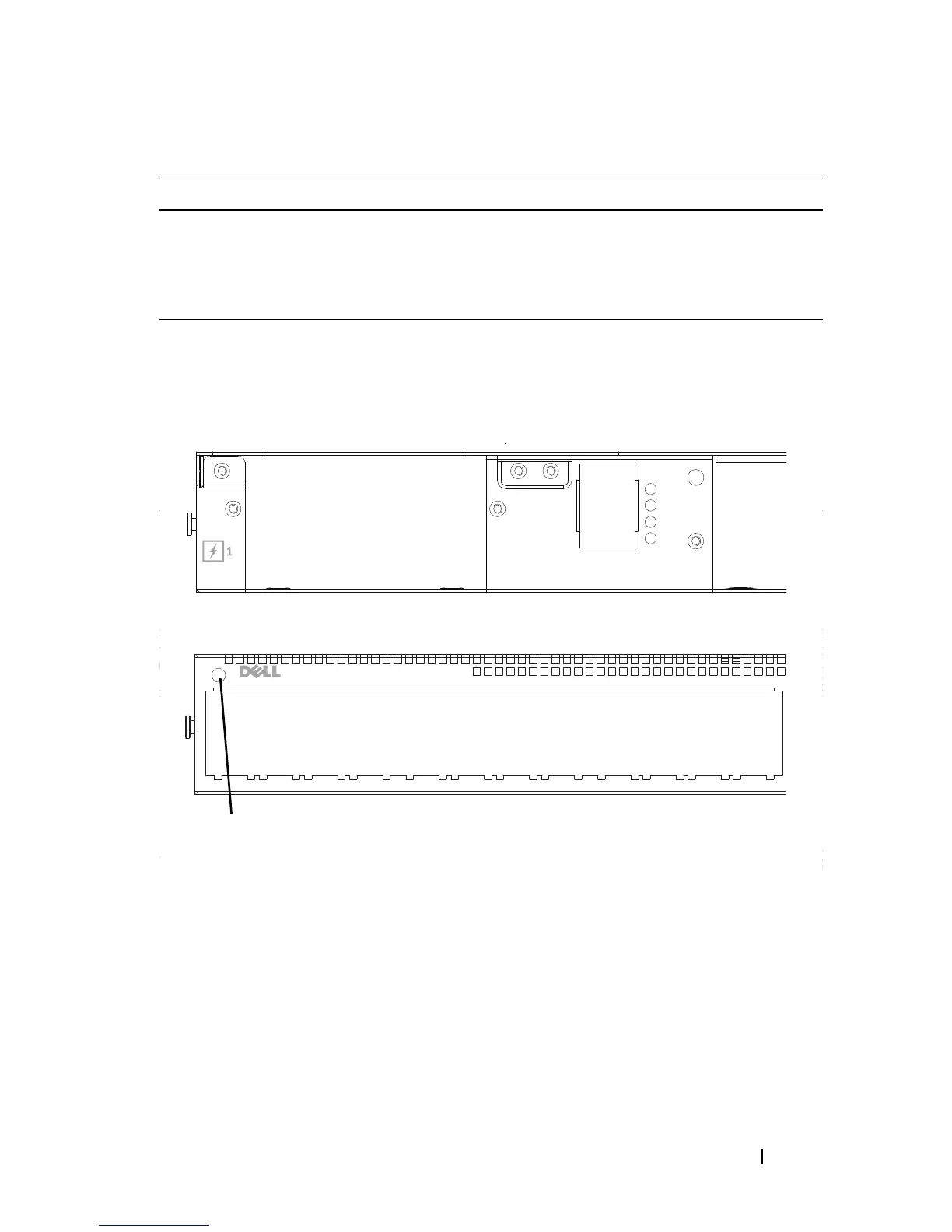

Figure 2. Port LEDs
Locator LED • Blinking blue - Locator
function is enabled
• Solid blue - Locator
function is disabled
On back panel
1. The thermal sensors system temperature threshold is 75°C. When the threshold is exceeded, the
Temp LED lights up to Red.
Table 1. LED Definitions for System (Continued)
Feature Detailed Description Comment
9
10
11
12
15
16
1
2
17
18
13
14
7
8
5
6
PowerConnect 8164
1
2
1
2
1
2
1
2
9
10
11
12
23
24
15
16
21
22
2319
20
17
18
13
14
7
8
5
6
3
4
Console
Locator
FAN 1
Temp
Dlag
Stack
OOB
System LED

Dell Networking N4000 Series Specifications

General

Layer	Layer 3
Switching Capacity	Up to 1.28 Tbps
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Series	N4000 Series
Stacking	Up to 12 units
Power Supply	Dual, hot-swappable
Management	Web, CLI, SNMP
Humidity	10% to 90% (non-condensing)
