For each rail, attach the front and rear flanges to the post flanges with two
user-supplied screws at each end. See
Figure 6, item 2 on page 18.

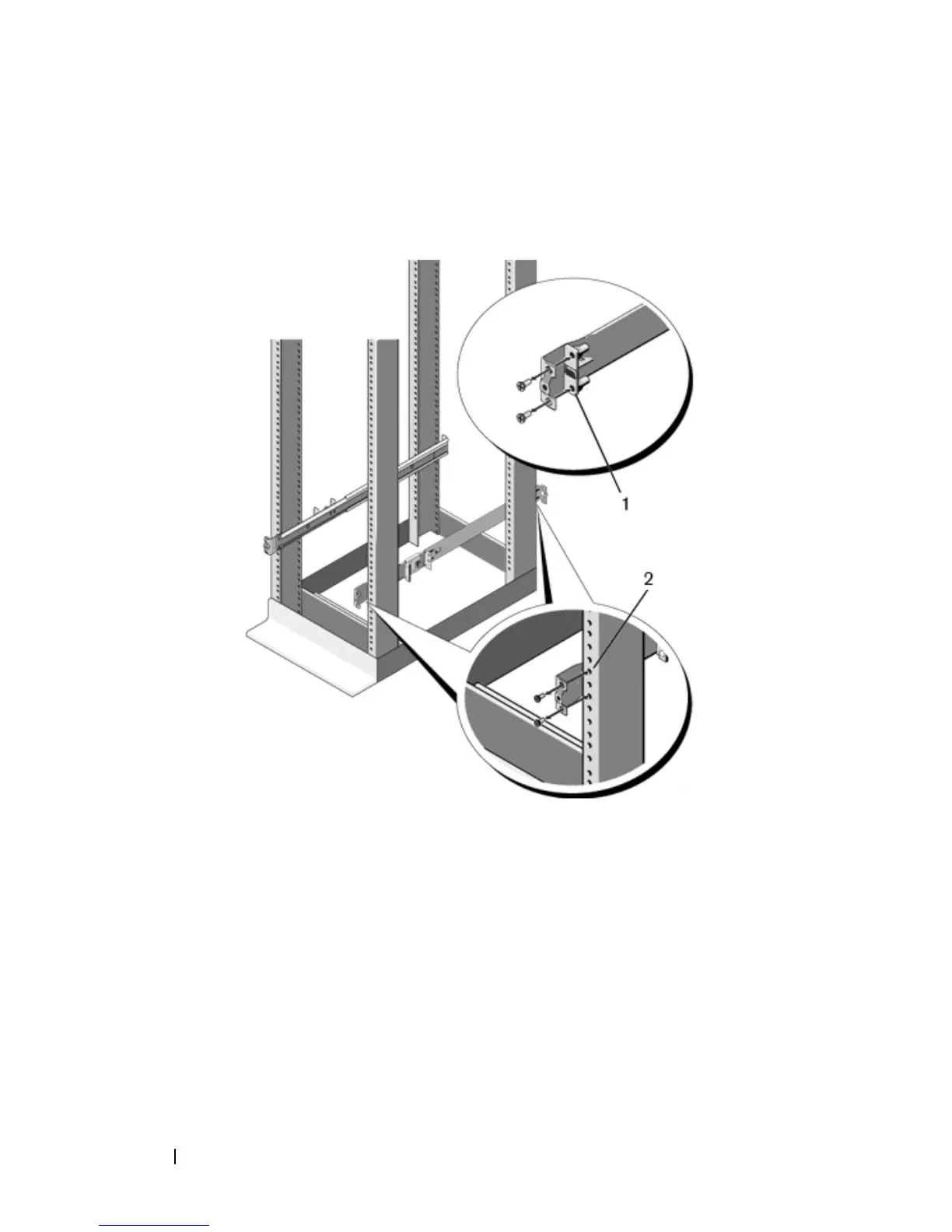

Figure 6. Four-post Threaded Configuration
Installing the Switch
The switch may be mounted in the 1U front-rack and 1U two-post (flush and
center) configurations. The following is an example of 1U front-rack
configuration. The 1U two-post (flush and center) configurations, you can
slide the switch into the rails in the same manner as the four-post
configurations.
