Dell Networking S4048 - 2 The S4048-ON System; Introduction

The S4048–ON system
The following sections describe the Dell S4048–ON system:
Topics:
• Introduction
• Features
• Physical dimensions
• System status
• LED display
• Prerequisites
• S4048–ON congurations
Introduction
S4048-ON is a networking switch for campus aggregation and core switching 10 Gbps servers and 40 Gbps optical uplinks to the 40 Gbps
switching fabric in the core.
The S4048–ON has:
• Forty-eight ports of 10G SFP+ ports for a 1/10 Gbps transceiver
• Six 40 Gbps xed QSFP+ optical ports for a 40 Gbps transceiver
• Serial RS 232 port, RJ-45, and MicroUSB
• RJ–45 management port
The S4048–ON I/O side includes:
• Forty-eight xed SFP+ and six xed QSFP+ ports
• Management port
• USB 2.0 port
• Serial RS 232 port, RJ-45 and MicroUSB
• LED display for the system, fan, and power status

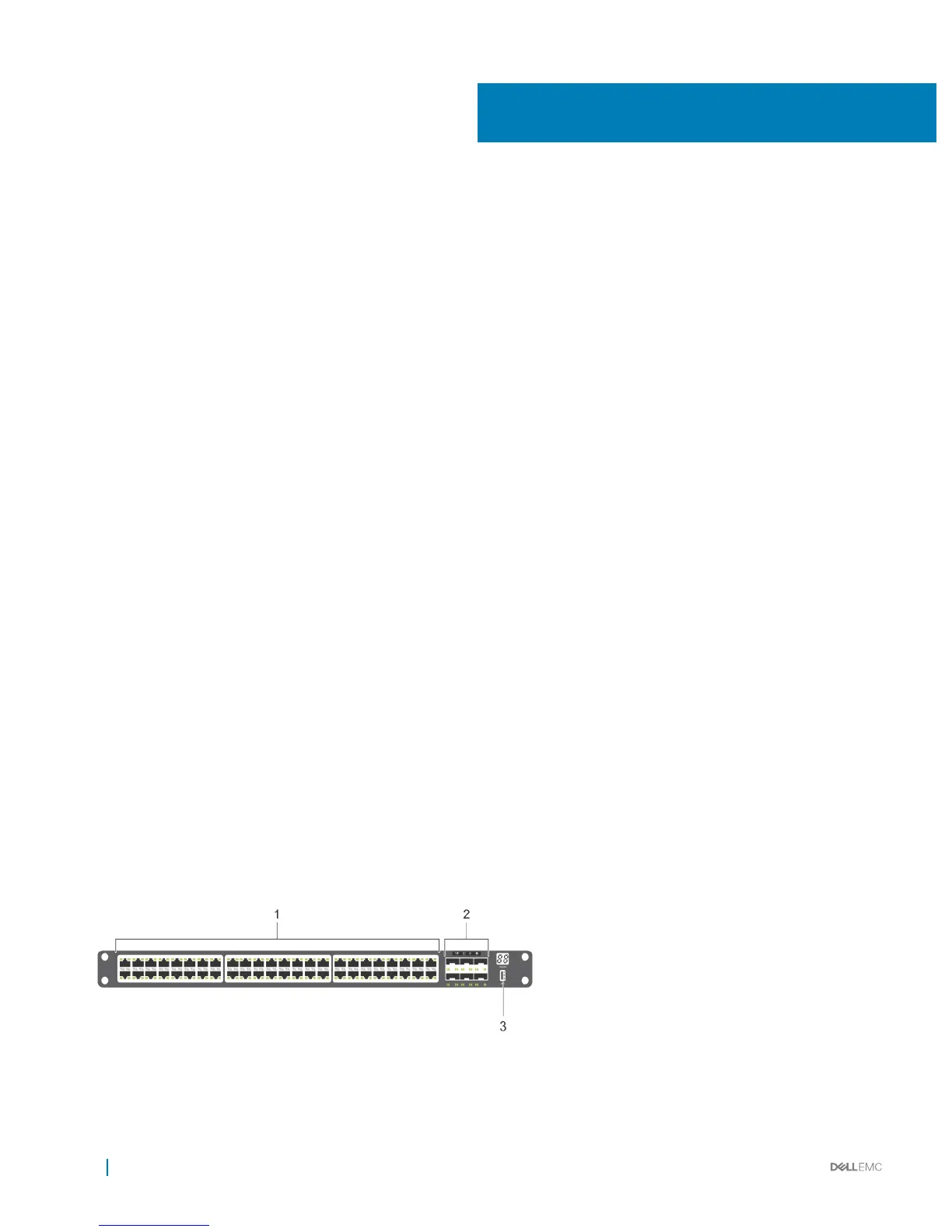

Figure 2. S4048–ON I/O-side view
2
6 The S4048–ON system
