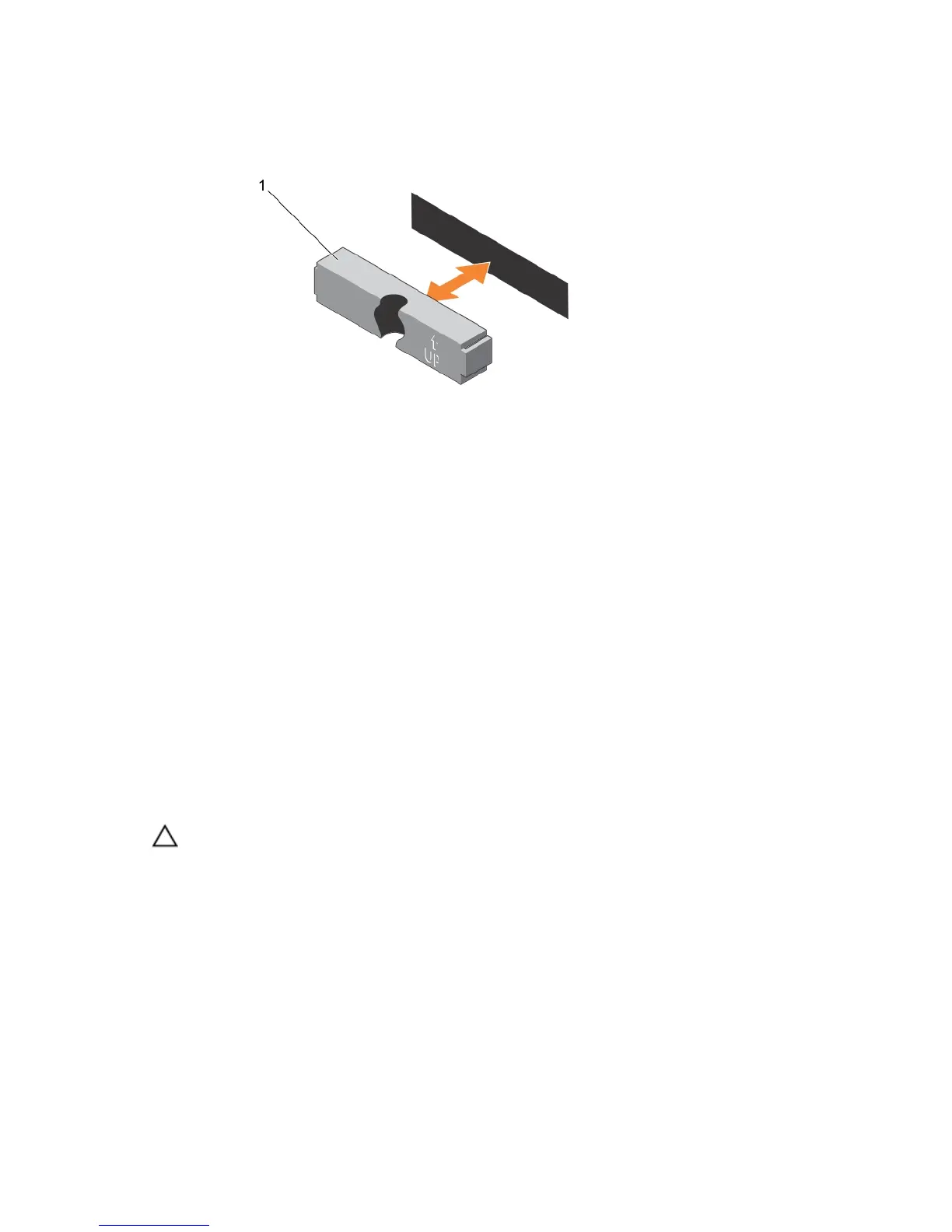

Figure 16. Removing and installing a 2.5-inch HDD blank (back)
1. HDD blank (back)
Installing a 2.5-inch HDD blank (back)
Prerequisites
1. Ensure that you read the Safety instructions sections in this document.
2. If installed, remove the front bezel.
Steps
Insert the HDD blank into the HDD slot until it clicks into place.
Next steps
Complete the tasks listed in After working inside your system section in this document.
Removing hot-swappable HDD
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that came with the product.
1. Ensure that you read the Safety instructions section in this document.
2. If applicable, remove the bezel.
3. If applicable, remove the system cover to remove hot-swap drives inside your system. Complete the
tasks listed in Before working inside your system section in this document.
4. Using the management software, prepare the HDD for removal. Wait until the indicators on the HDD
carrier signal that the HDD can be removed safely. For more information, see the documentation for
the storage controller.
59
