Dell OptiPlex 3020–Mini Tower - Page 24

4. Release the power-switch cable from the chassis clips.

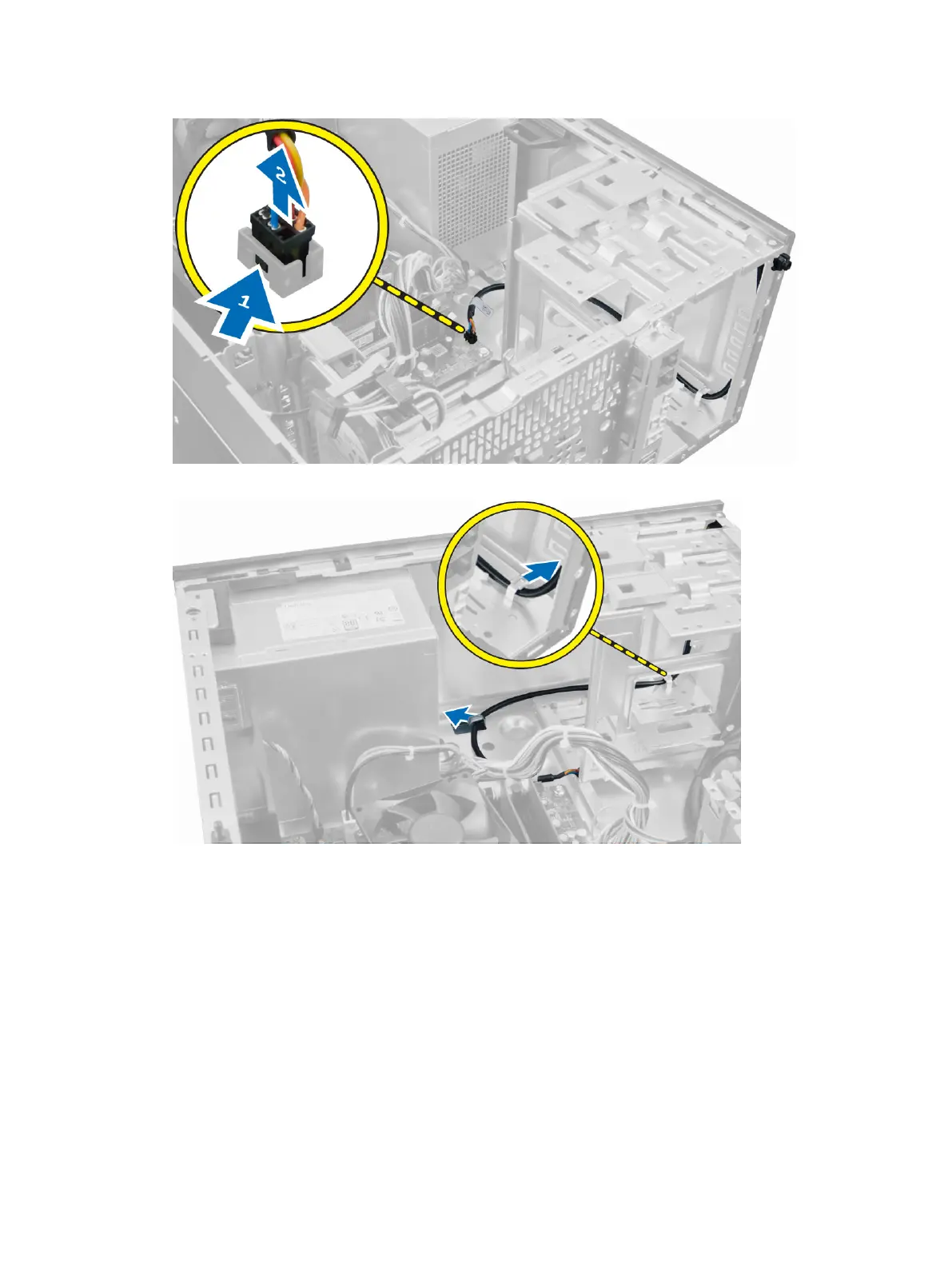

5. Perform the following steps as shown in the illustration:
a) Press the clips on both side of the power switch to release it from the chassis [1].
b) Slide to remove the power switch along its cable from the computer [2].
24
