Dell OptiPlex 3090 Small Form Factor User Manual

Table 1. Screw list (continued)
Component Screw type Quantity Screw image
Power supply unit 6-32 6
System board 6-32
M2x4
8
1
Major components of OptiPlex 3090 Small Form
Factor

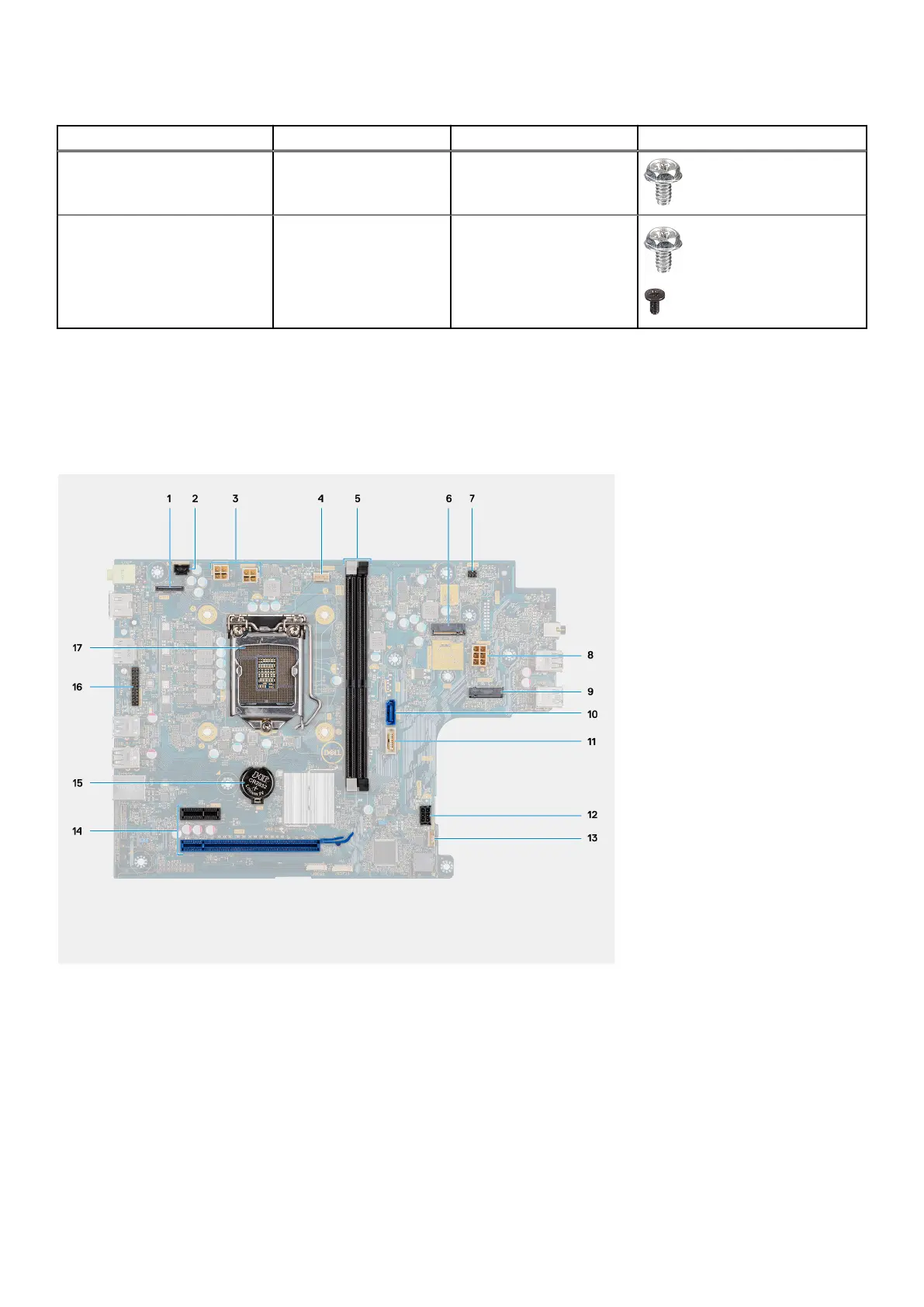

The following image shows the major components of OptiPlex 3090 Small Form Factor .
1. Video connector 2. Intrusion switch connector
3. CPU power connector (ATX_CPU) 4. CPU fan connector
5. Memory slots (DIMM1,DIMM2) 6. M.2 solid-state drive connector
7. Power switch connector (PWR_SW) 8. PSU connector
9. M.2 WLAN connector 10. SATA 0 connector
11. SATA 2 connector 12. Internal speaker connector
13. PCIe connector 14. Coin-cell battery
15. KB/MS serial header 16. Processor socket (CPU)
Removing and installing components 11

Dell OptiPlex 3090 Small Form Factor Specifications

General

Brand	Dell
Model	OptiPlex 3090 Small Form Factor
Category	Desktop
Language	English
