Front bezel
Removing the front bezel
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.
About this task

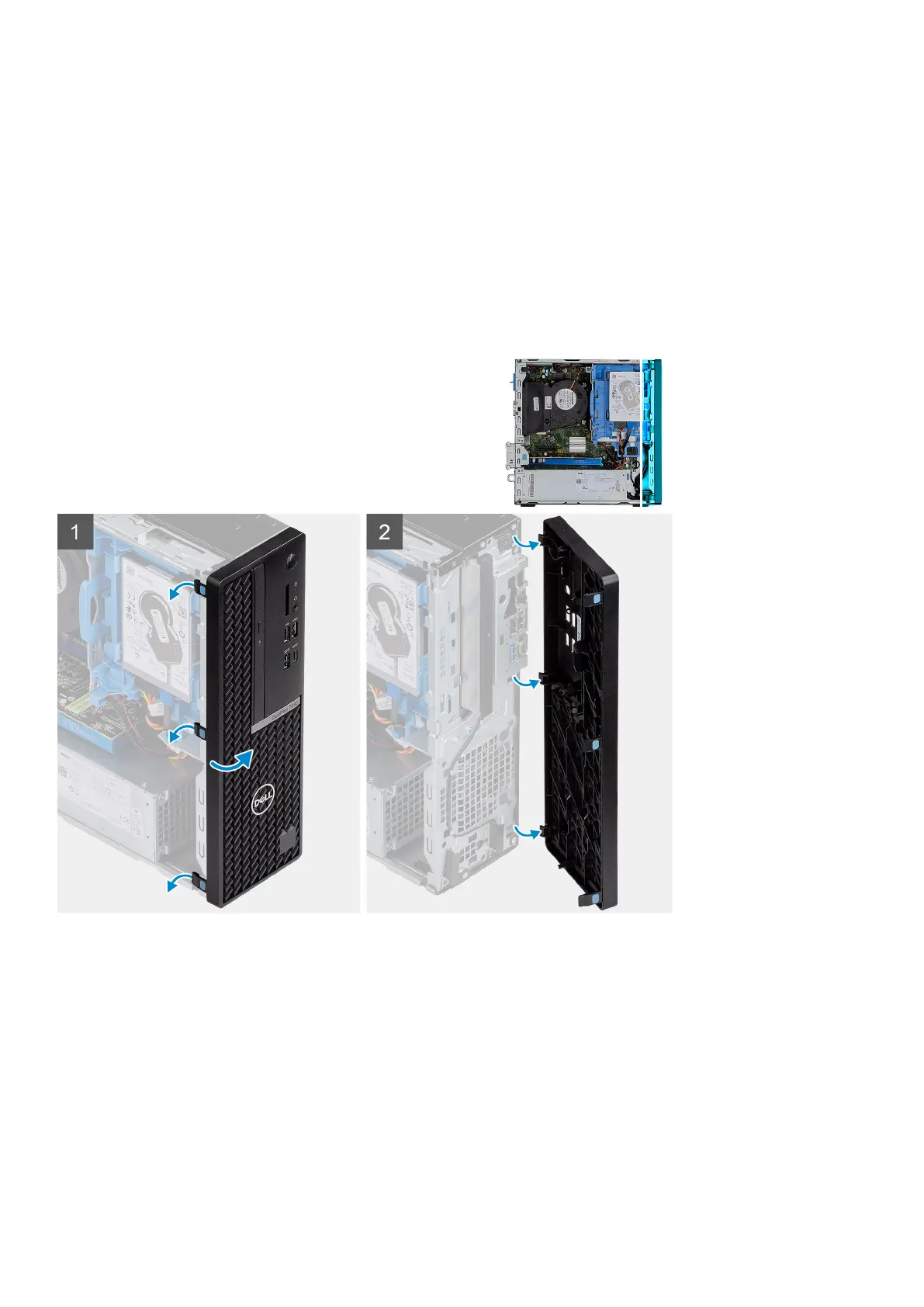

The following images indicate the location of the front bezel and provide a visual representation of the removal procedure.
Steps
1. Gently pry and release the front cover sequentially from the top.
2. Rotate the front cover outward from the chassis.
3. Remove the front bezel from the chassis.
Installing the front bezel
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
Removing and installing components
15
