Steps

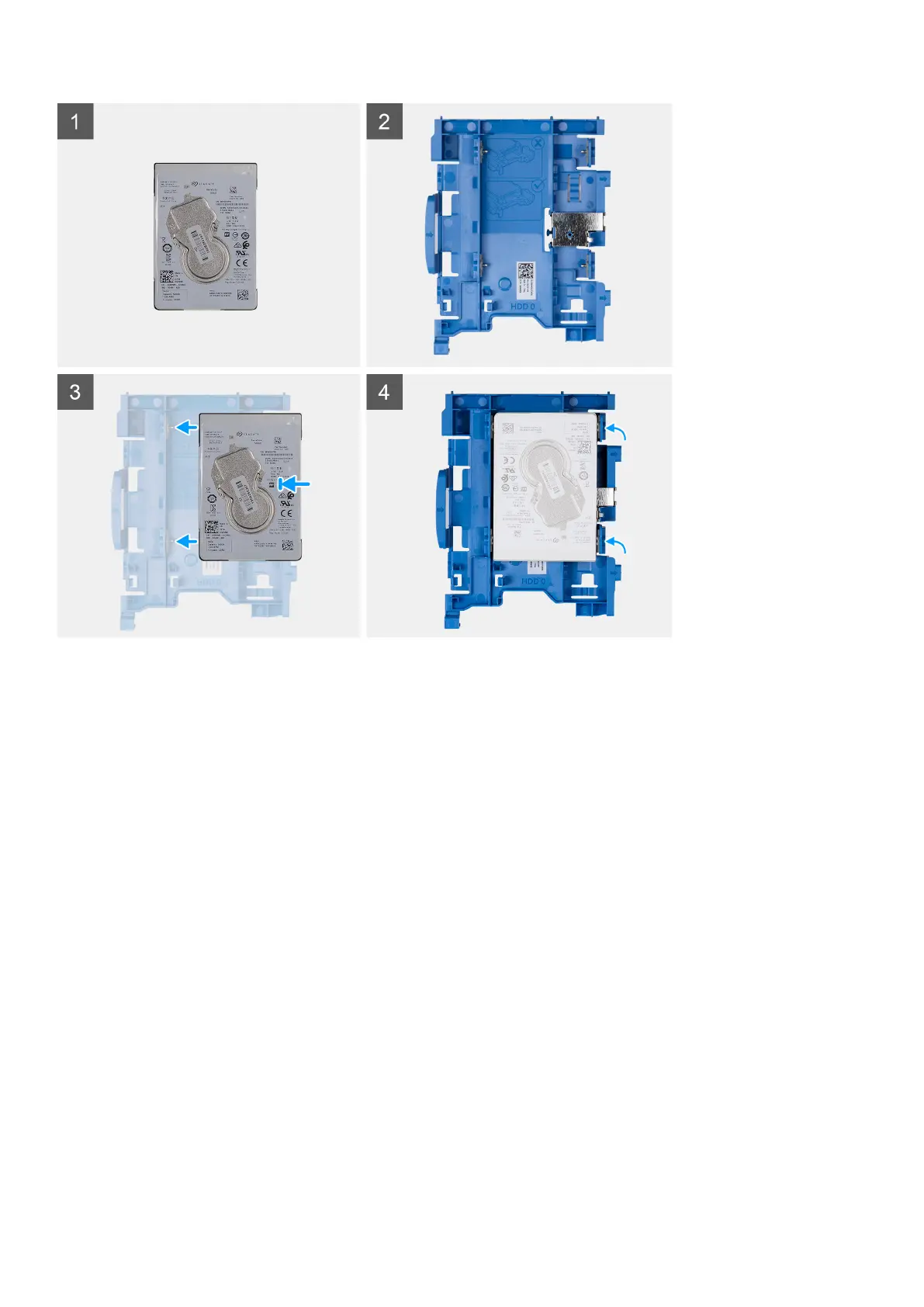

1. Align the hard drive with the mounting points on the bracket and place the hard drive onto it.
2. Pull the tabs on the right side of the bracket until the hard drive clicks into place.
Next steps
1. Install the 2.5-inch hard-drive assembly.
2. Install the front bezel.
3. Install the side cover.
4. Follow the procedure in After working inside your computer.
Installing the 2.5-inch hard-drive assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the 2.5-inch hard-drive assembly and provides a visual representation of the
installation procedure.
Removing and installing components
19
