Steps

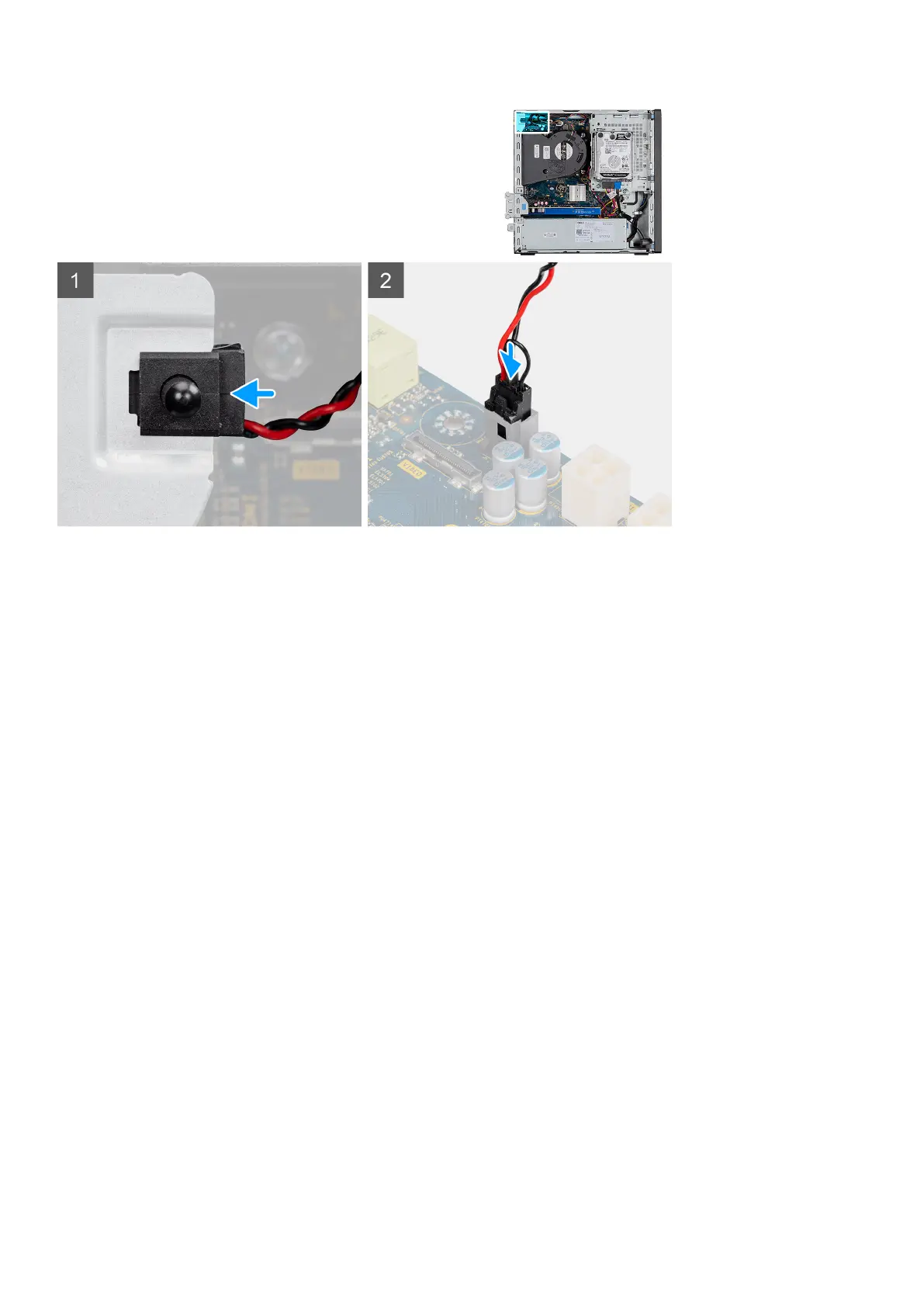

1. Insert the intrusion switch into its slot and slide the switch to secure it into the slot.
2. Connect the intruder cable to the connector on the system board.
Next steps
1. Install the side cover.
2. Follow the procedure in After working inside your computer.
Power button
Removing the power button
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.
3. Remove the front bezel.
4. Remove the 3.5/2.5-inch hard-drive assembly.
5. Remove the hard-drive and optical-drive bracket.
About this task
The following images indicate the location of the power button and provides a visual representation of the removal procedure.
54
Removing and installing components
