About this task

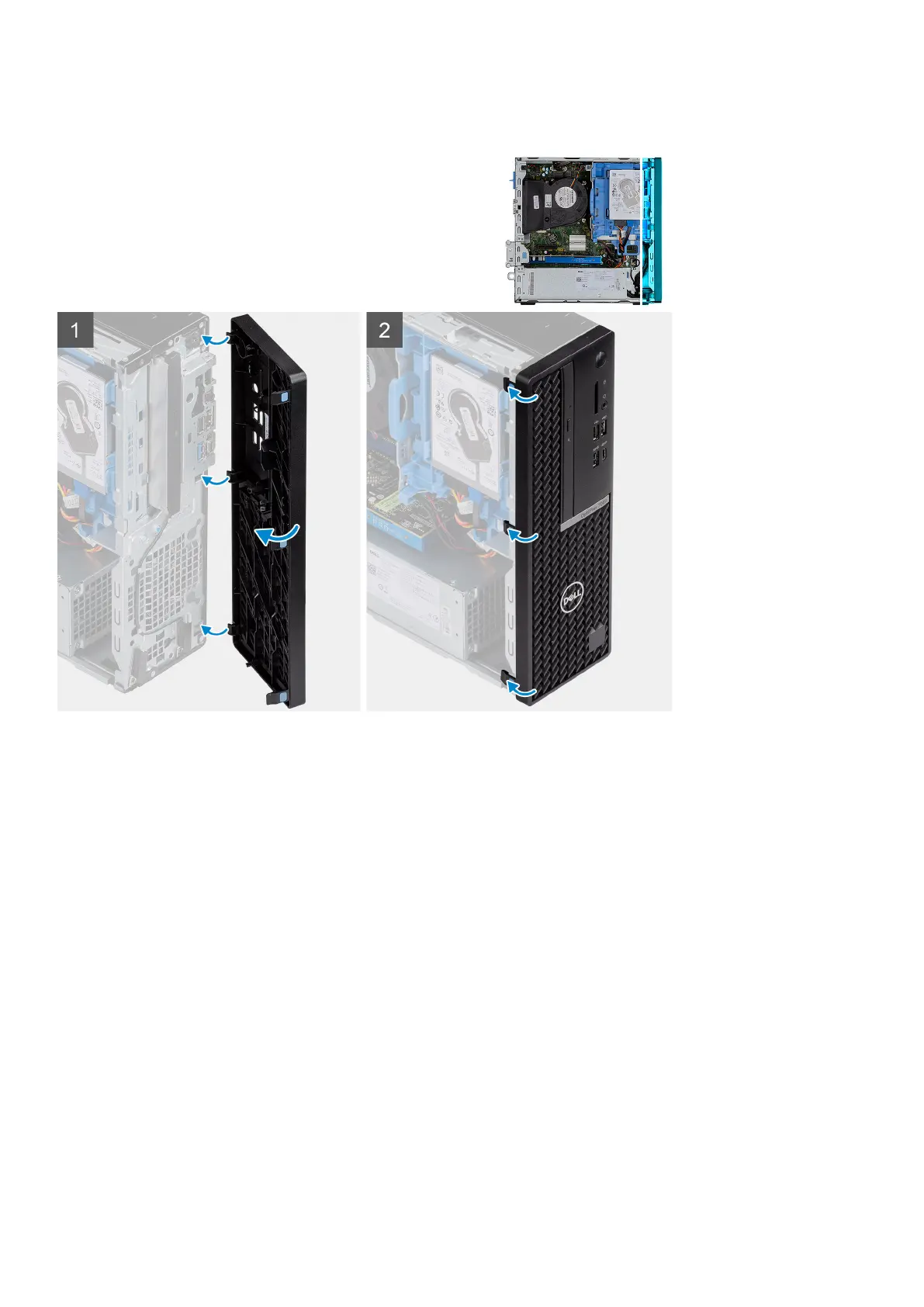

The following image indicates the location of the front bezel and provides a visual representation of the installation procedure.
Steps
1. Align and insert the front cover into the slots on the chassis.
2. Rotate the front cover towards the chassis and snap it into place.
Next steps
1. Install the side cover.
2. Follow the procedure in After working inside your computer.
2.5-inch hard drive
Removing the 2.5-inch hard-drive assembly
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.
3. Remove the front bezel.
About this task
The following images indicate the location of the 2.5-inch hard-drive assembly and provide a visual representation of the
removal procedure.
16
Removing and installing components
