Dell OptiPlex 3090 Small Form Factor User Manual

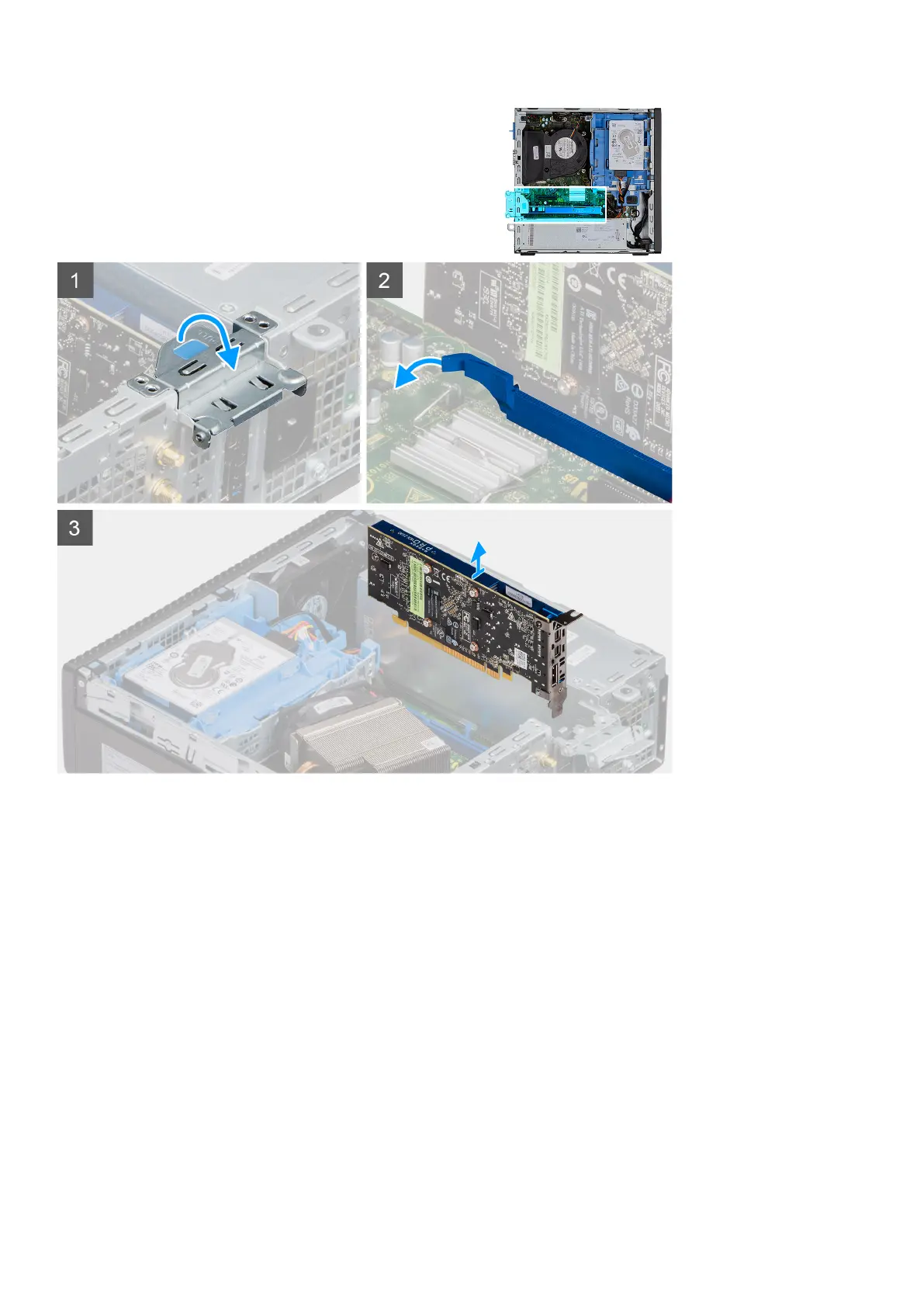

Steps
1. Pull the metal tab to open the expansion card latch.
2. Pull the release tab at the base of the expansion card.
3. Lift the graphics card away from the connector on the system board.
Installing the graphics card
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the graphics card and provides a visual representation of the installation procedure.
Removing and installing components
41
