Dell OptiPlex 3090 Small Form Factor User Manual

Steps

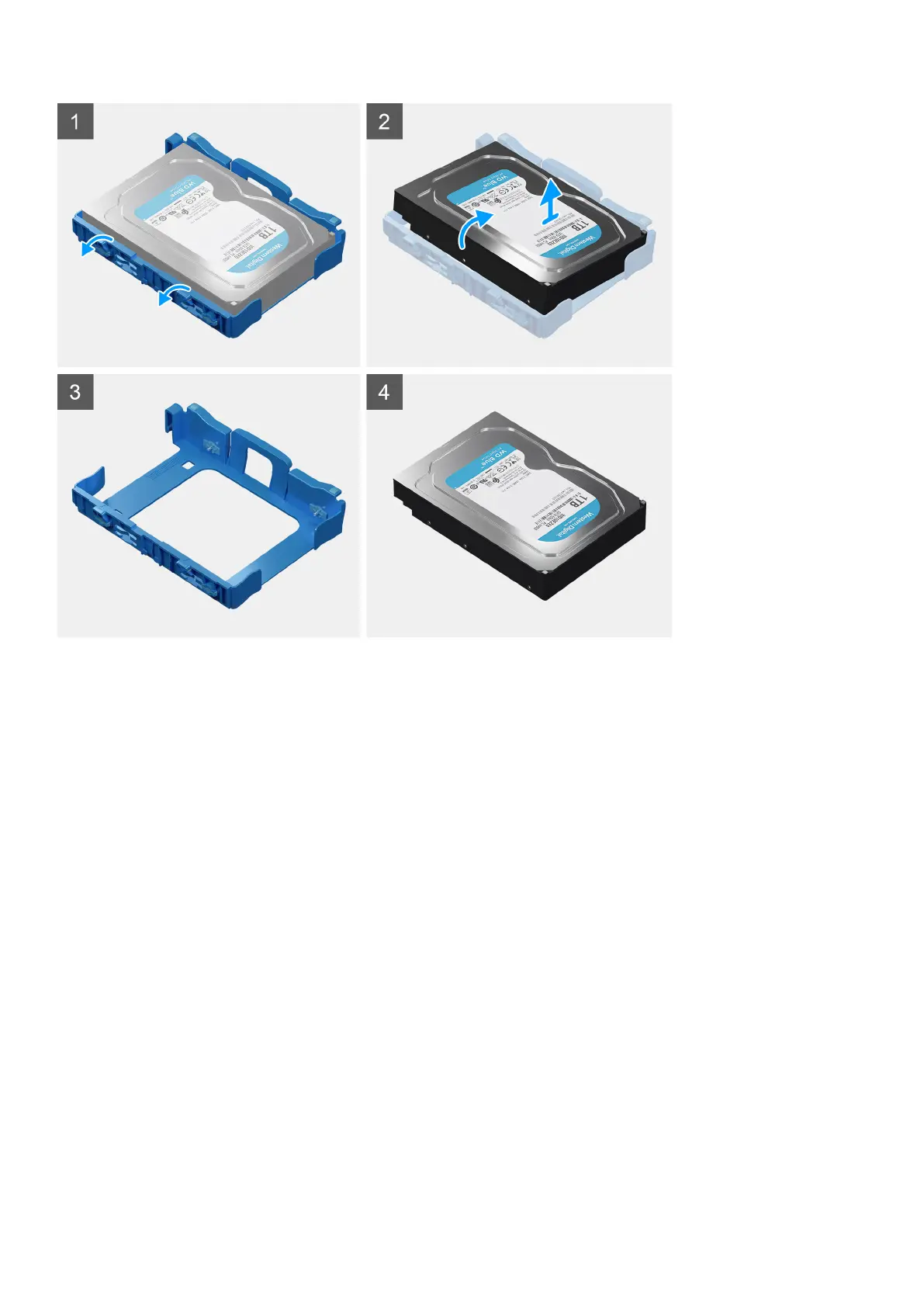

1. Pull the two tabs from the hard-drive caddy away from the hard drive.
2. Slide the hard-drive towards the right to free it from the mounting points on the caddy and lift it away from the system.
Installing the 3.5-inch hard drive
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the 3.5-inch hard drive bracket and provides a visual representation of the
installation procedure.
22
Removing and installing components
