Steps

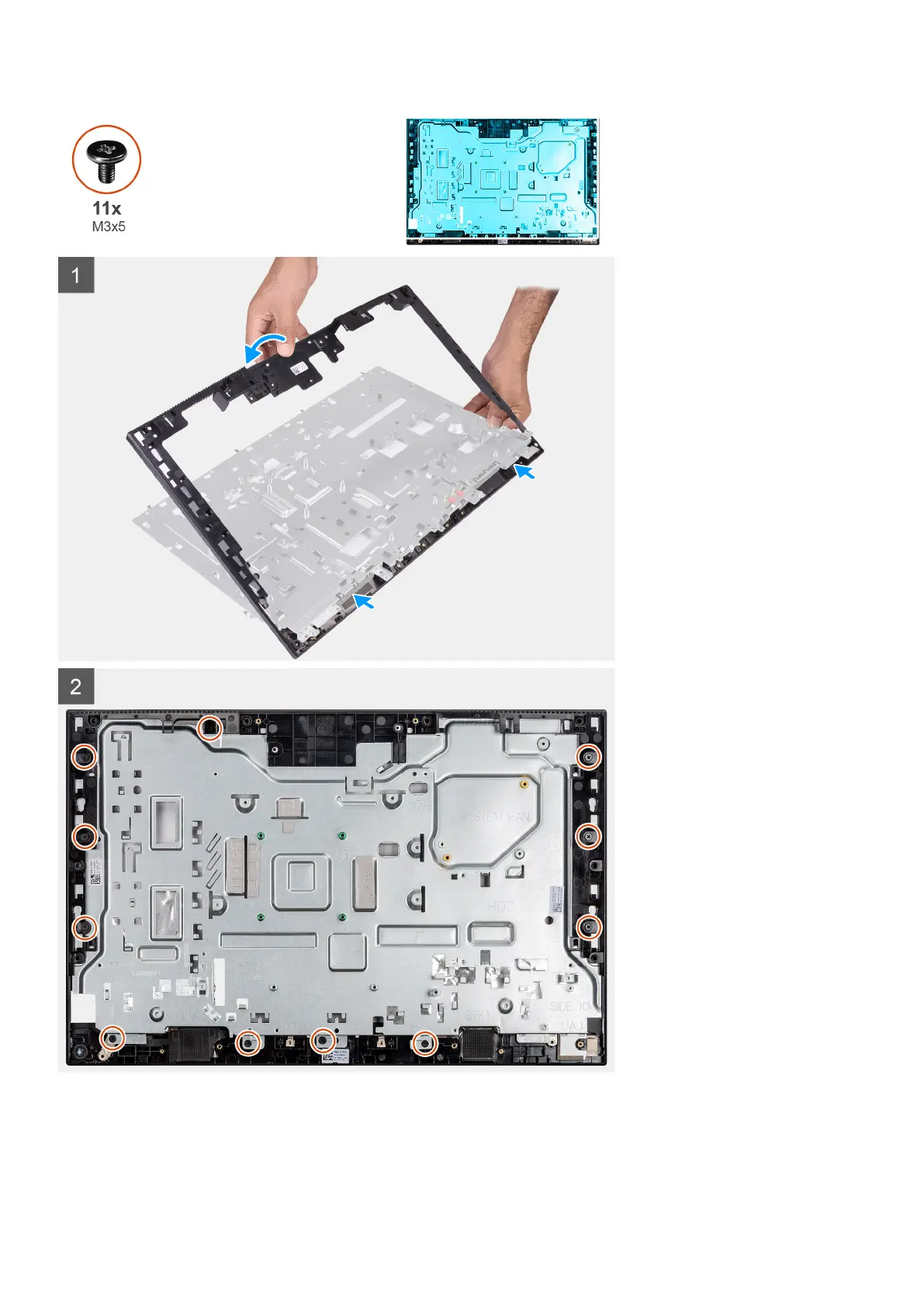

1. Slide and align the middle frame to the slots on the display-assembly base, then snap the middle frame into place on the
display-assembly base.
2. Replace the 11 screws (M3x5) to secure the middle frame to the display-assembly base.
