Disassembly and reassembly
Back cover
Removing cover
1 Follow the procedure in Before working inside your computer.

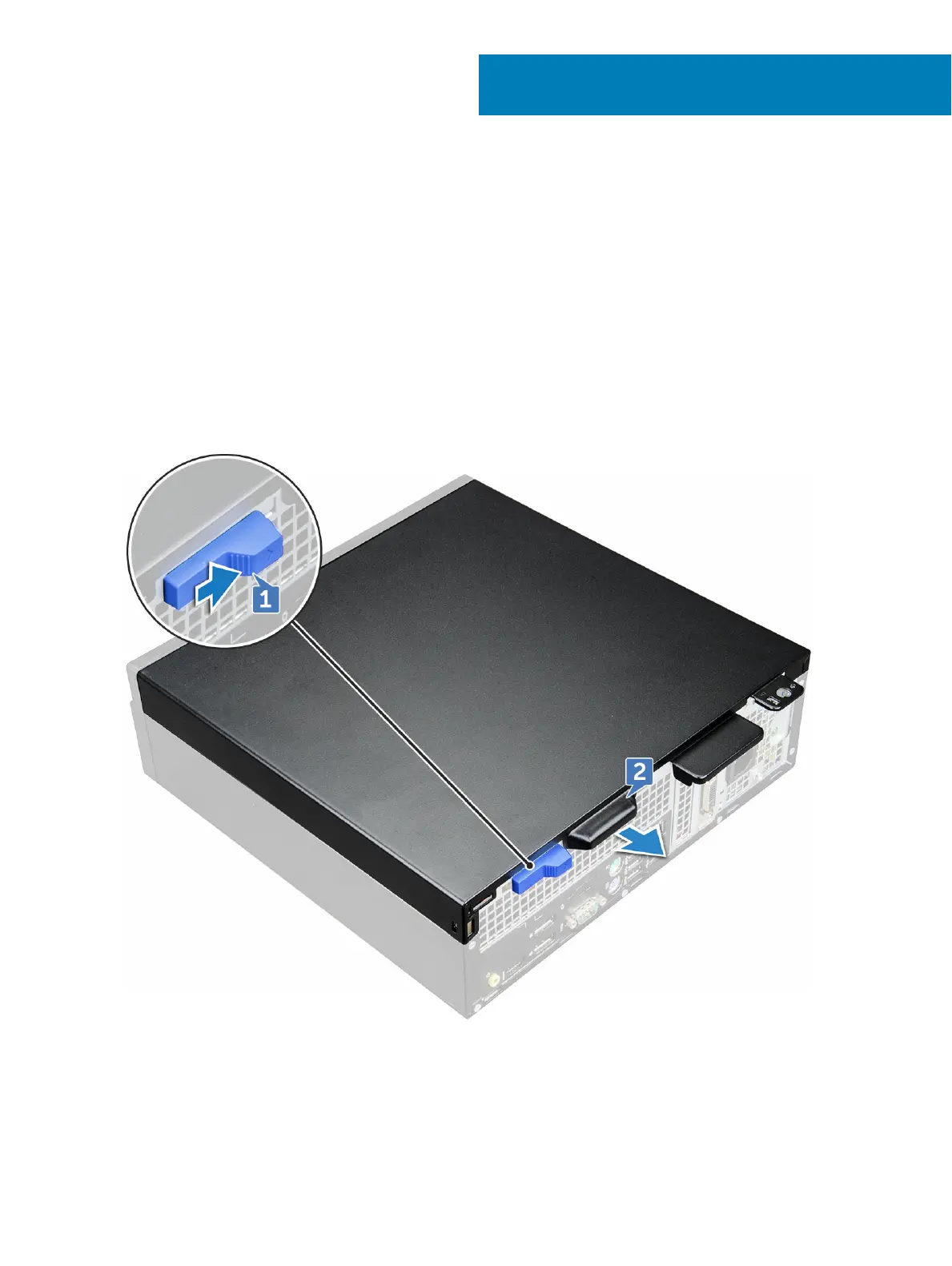

2 To release cover:
a Slide the blue retention tab to the right to unlock the cover [1].
b Slide the cover toward the back of the computer [2].
3 Lift the cover to remove it from the computer.
3
10 Disassembly and reassembly
