Installing cooling shroud
NOTE
: When inserting the shroud on the processor assembly, please ensure that the data and power cables of the optical drive
do not get caught inside the shroud.

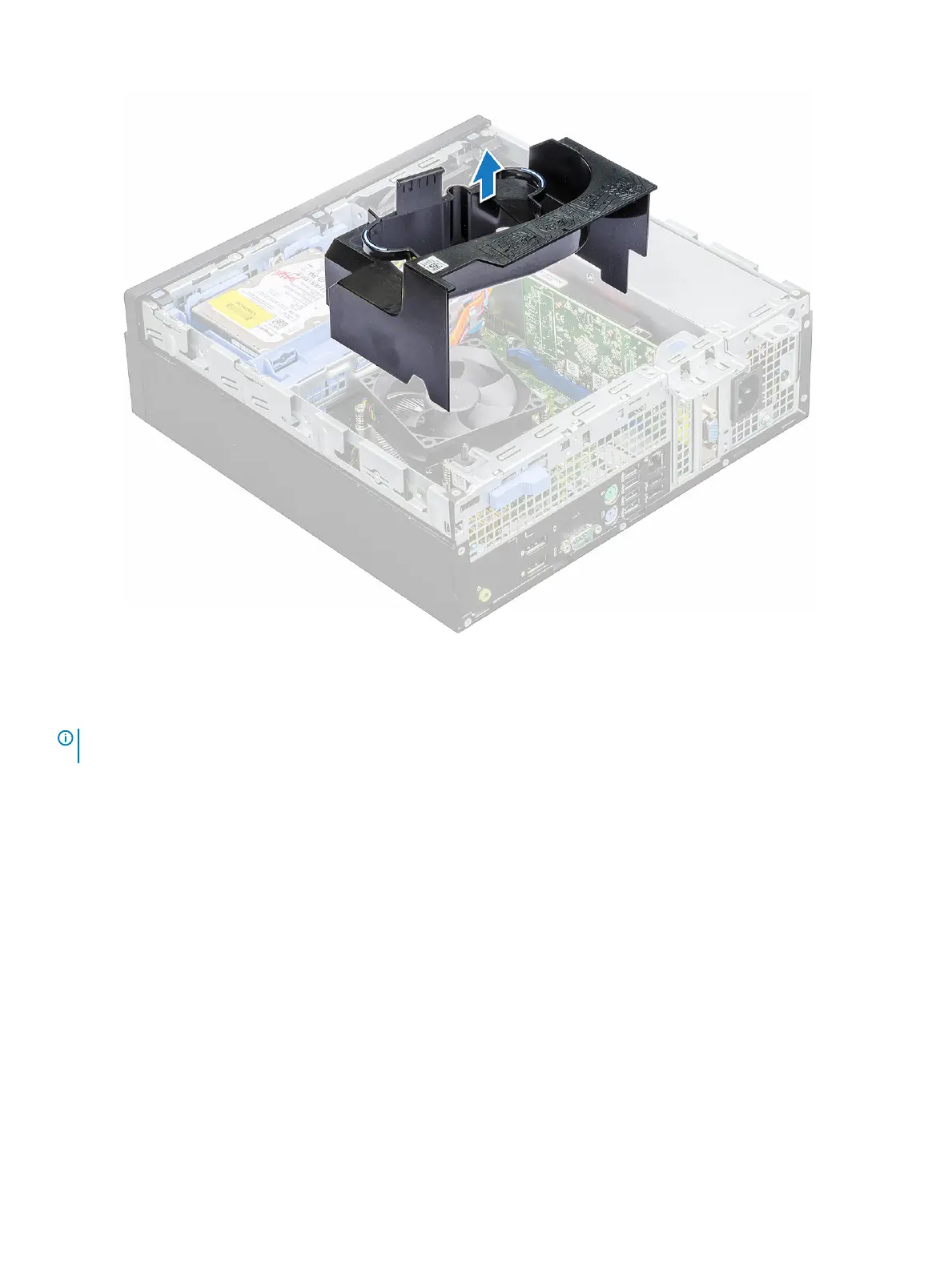

1 Align the slots on the cooling shroud, with the screws on the heat sink.
2 Insert the cooling shroud over the processor assembly.
3 Install the cover.
4 Follow the procedure in After working inside your computer.
Coin-cell battery
Removing coin cell battery
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a cover
b cooling shroud
c expansion card
3 To remove the coin cell battery:
a Using a plastic scribe press the release latch until the coin cell battery pops out [1].
Disassembly and reassembly
19
