b cooling shroud
c front bezel
d cover
7 Follow the procedure in After working inside your computer.
M.2 PCIe SSD
Removing M.2 PCIe SSD
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a cover
b front bezel
c 2.5 inch hard drive assembly
d cooling shroud
e optical drive

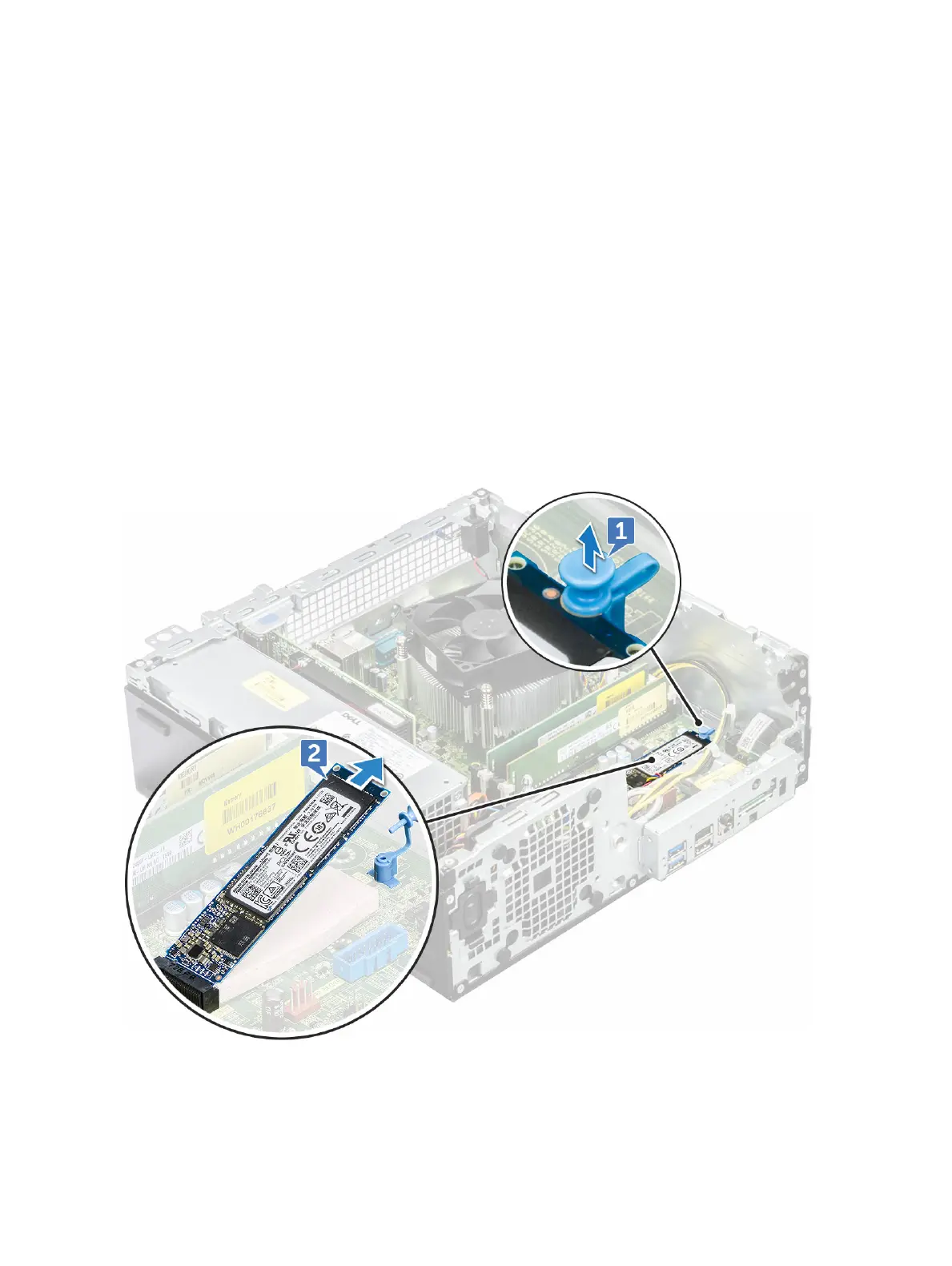

3 To remove the M.2 PCIe SSD:
a Pull the blue plastic pin that secures the M.2 PCIe SSD to the system board [1].
b Disconnect the M.2 PCIe SSD from the connector on the system board [2].
Disassembly and reassembly 23
