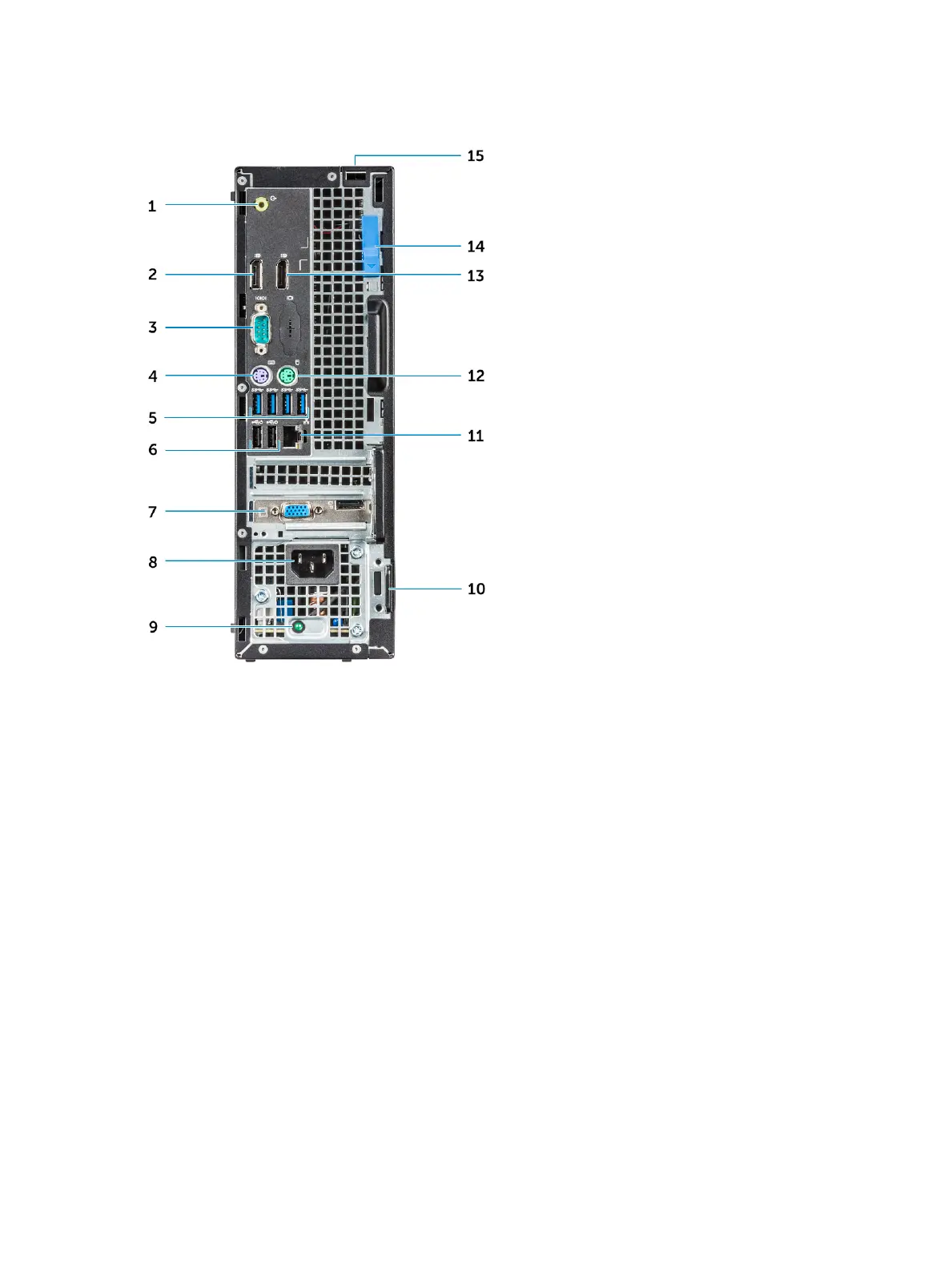

Back chassis view
1 Line-out port 2 DisplayPort
3 Serial port 4 PS/2 keyboard port
5 USB 3.0 ports 6 USB 2.0 ports (supports Smart Power On)
7 Expansion card slots 8 Power connector port
9 Power supply diagnostic light 10 Kensington security cable slot
11 Network port 12 PS/2 mouse port
13 DisplayPort 14 Release latch
15 Cable cover lock slot
Chassis 9
