Dell OptiPlex 5055 Small Form Factor User Manual

Removing 2.5–inch hard drive from the hard drive bracket
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a cover
b 2.5 inch hard drive assembly

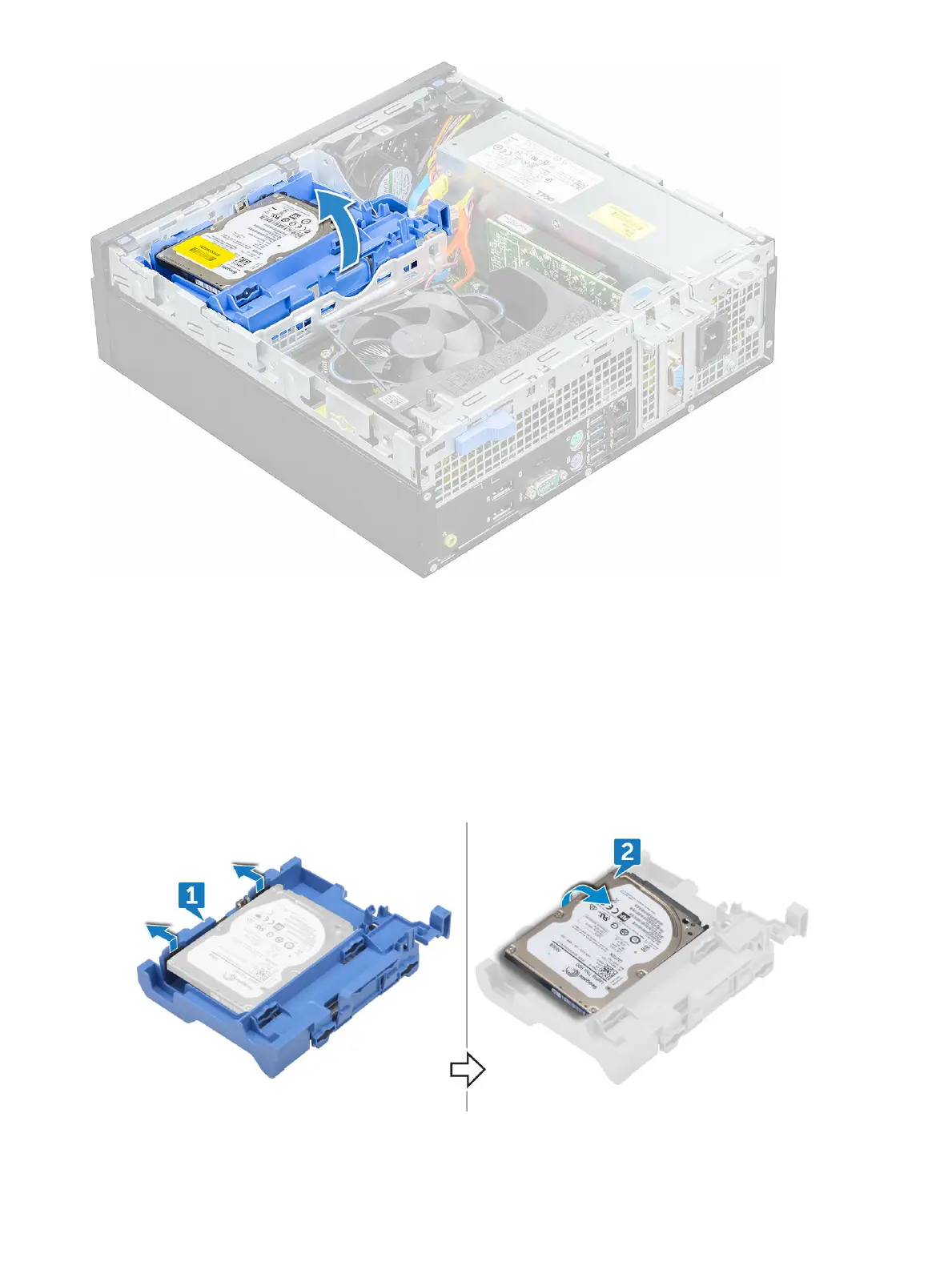

3 To remove hard drive bracket:
a Pull one side of the hard drive bracket to disengage the pins on the bracket from the slots on the hard drive [1].
b Lift the drive out of the 2.5-inch drive bracket [2].
14
Disassembly and reassembly
