Dell OptiPlex 5055 Small Form Factor User Manual

c 2.5 inch hard drive assembly
d cooling shroud
e optical drive

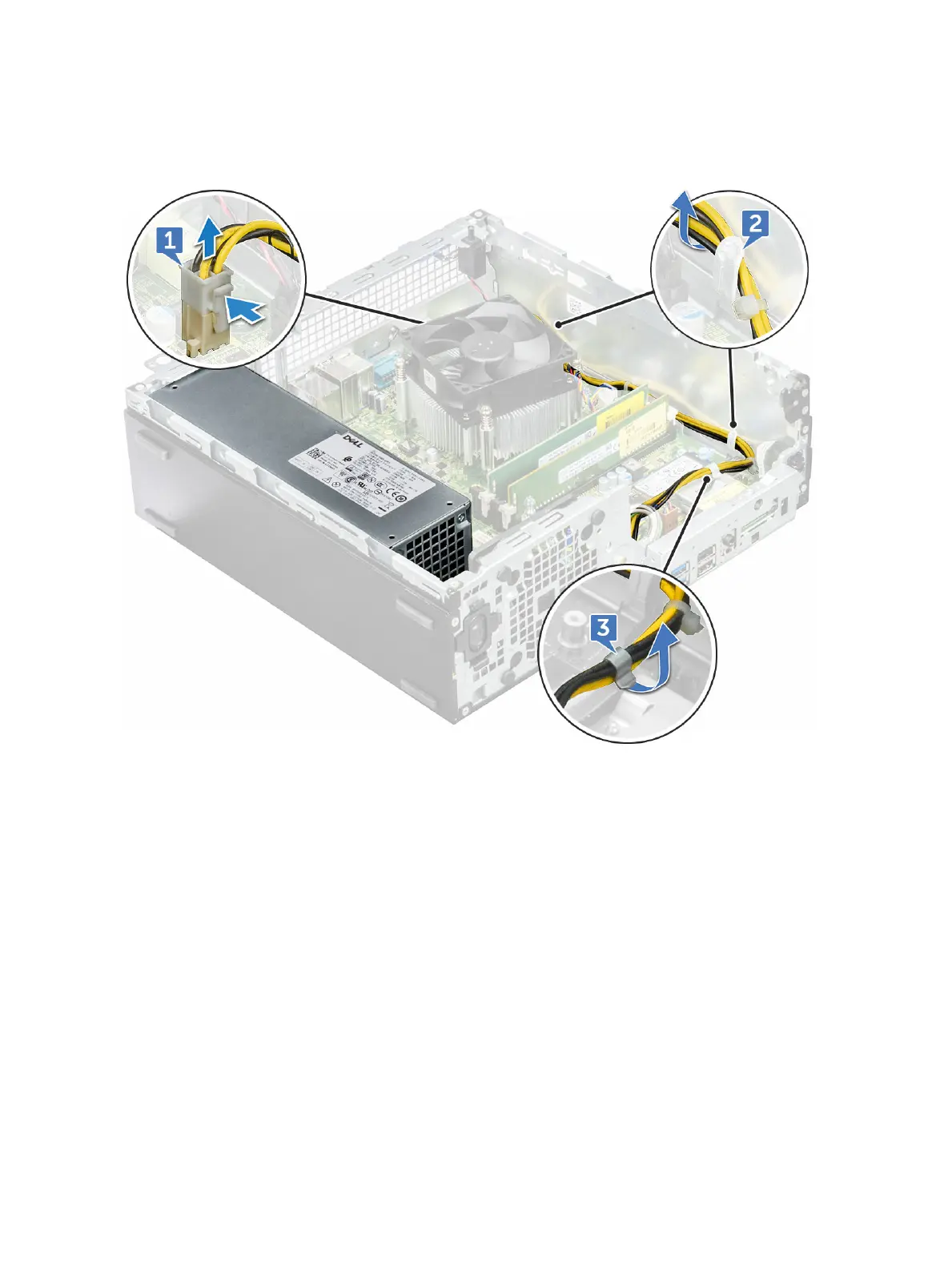

3 To release the PSU:
a Disconnect the PSU cables from the connectors on the system board [1].
b Unroute the PSU cables from the retention clips [2, 3].
4 To disconnect the cables:
a Disconnect the power cable from the system board [1] [2].
b Lift the cables away from the computer [3, 4].
c Remove the 6 screws that secure the PSU to the computer [5].
