Steps

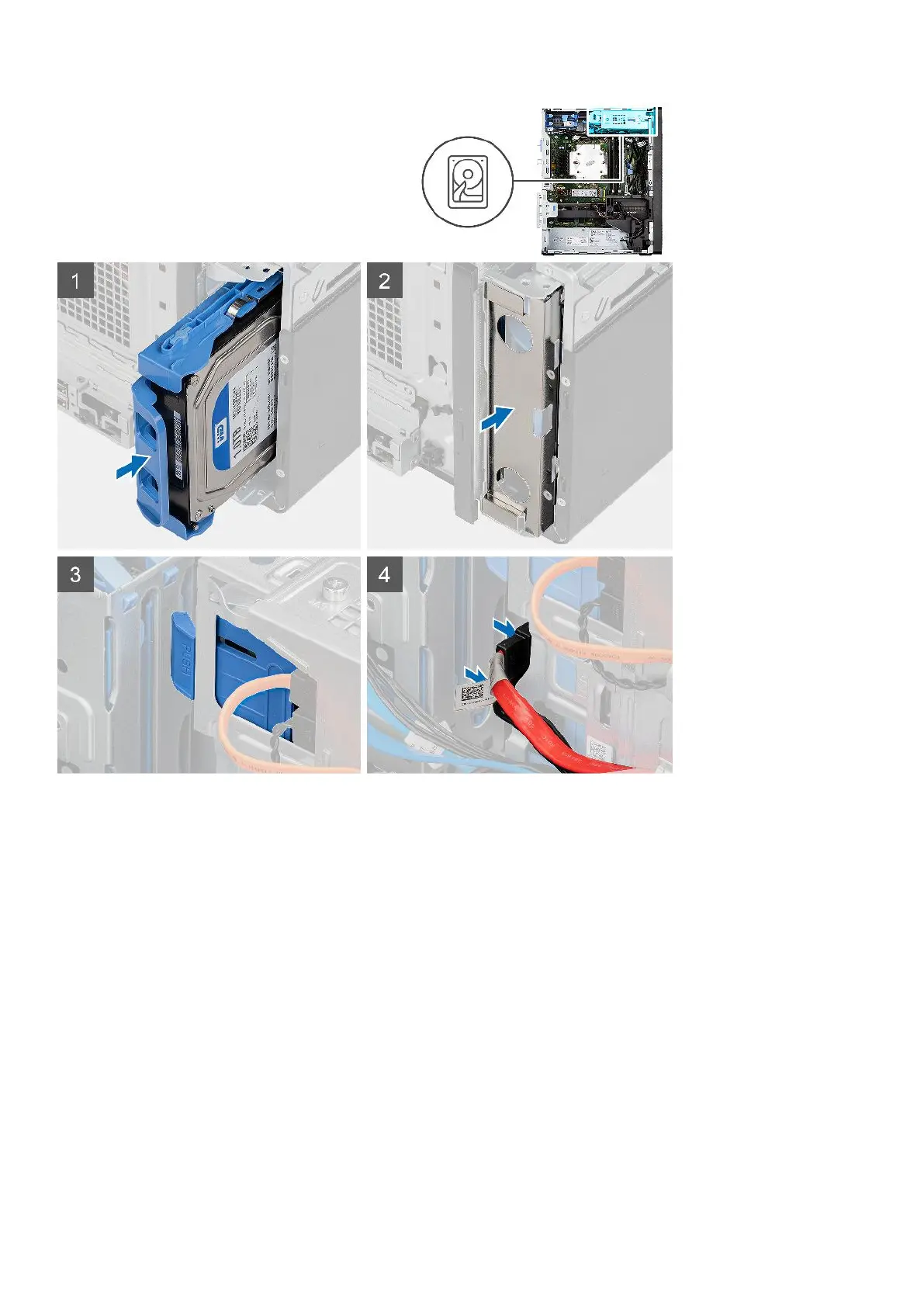

1. Slide and insert the 3.5-inch hard-disk drive assembly into the hard-disk drive slot.
2. Replace the EMI shield on the chassis.
3. Align the hard-disk drive assembly with the tabs on the chassis.
4. Route the power cable and the data cable through the routing guides on the hard-disk drive assembly and connect the
cables to the hard-disk drive.
Next steps
1. Install the side cover.
2. Follow the procedure in after working inside your computer.
26
Removing and installing components
