Dell OptiPlex 7090 Tower - Slim Optical-Drive Bracket; Removing the Slim-ODD Bracket; Installing the Slim-ODD Bracket

Slim optical-drive bracket
Removing the slim-ODD bracket
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
3. Remove the slim Optical Disk Drive.
About this task

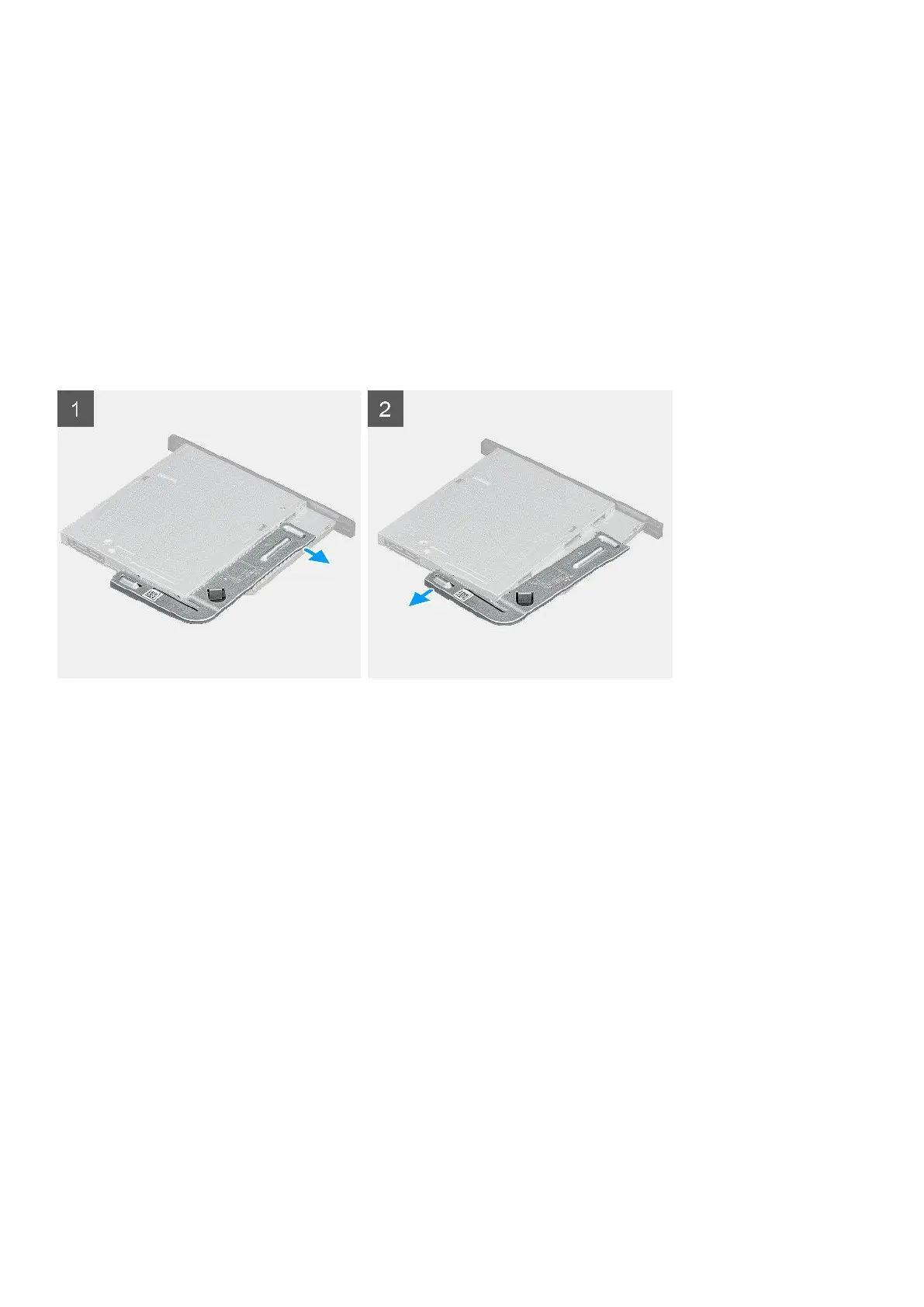

The following images indicate the location of the slim-ODD bracket and provide a visual representation of the removal
procedure.
Steps
1. Pry the slim-ODD bracket to release it from the slot on the ODD.
2. Remove the slim-ODD bracket off the ODD.
Installing the slim-ODD bracket
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the slim-ODD bracket and provide a visual representation of the installation
procedure.
