Graphical processing unit
Removing the powered GPU
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
About this task

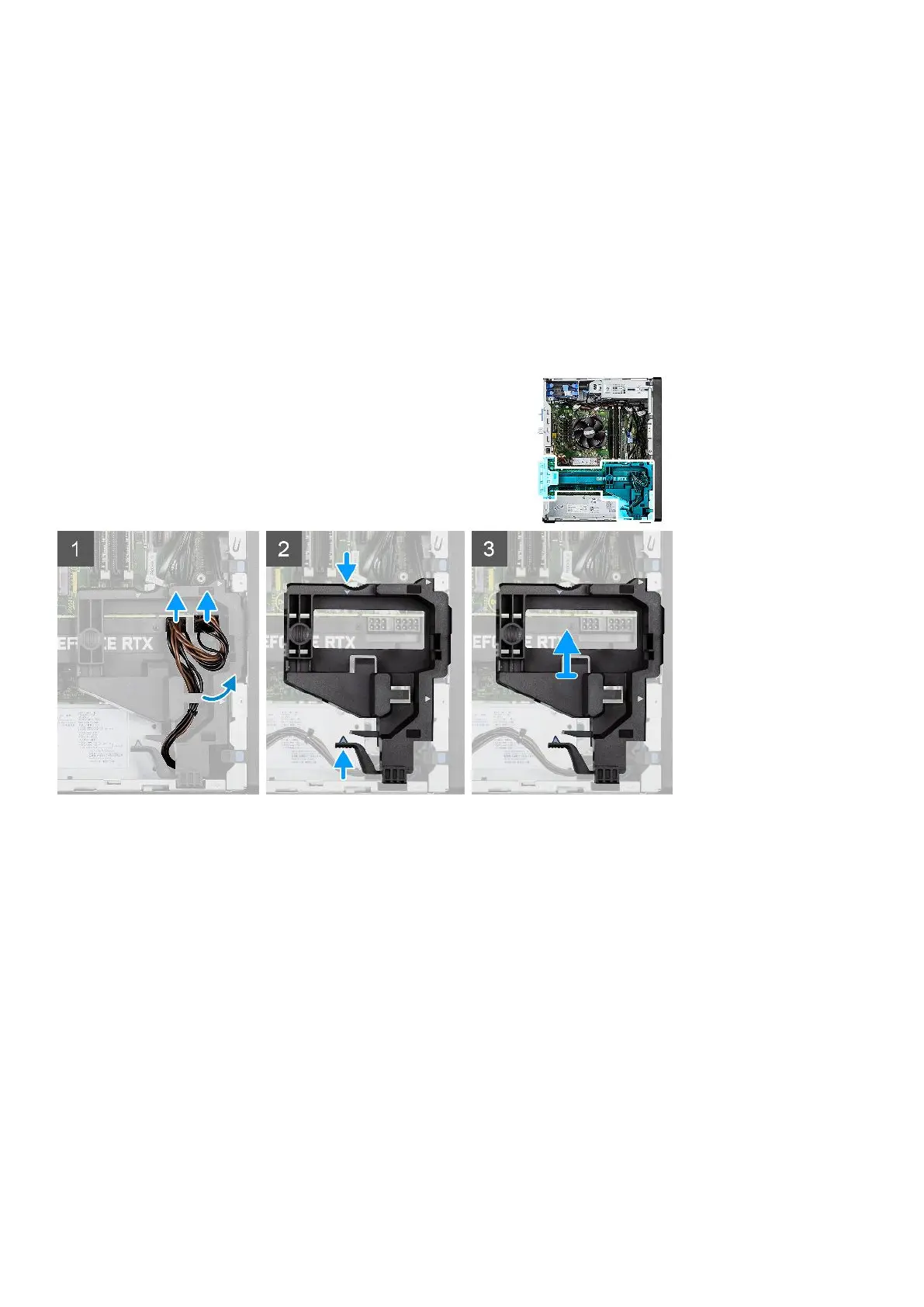

The following images indicate the location of the powered graphical processing unit and provide a visual representation of the
removal procedure.
Removing and installing components 43
