Steps

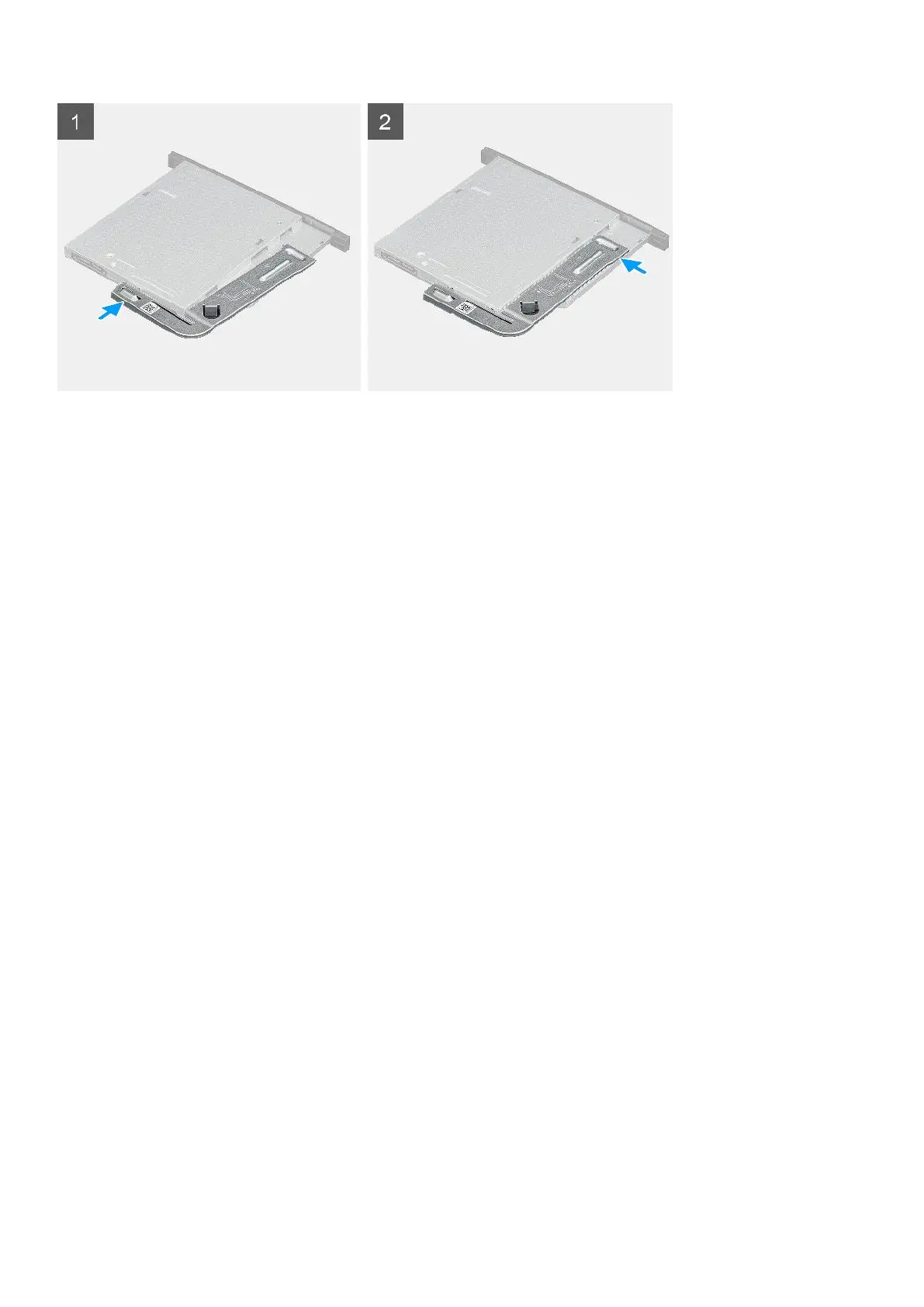

1. Align and place the slim-ODD bracket on the ODD slots.
2. Snap the slim-ODD bracket into the slim ODD.
Next steps
1. Install the slim Optical Disk Drive.
2. Install the side cover.
3. Follow the procedure in after working inside your computer.
Chassis fan
Removing the chassis fan
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
About this task
The following image indicates the location of the chassis fan and provide a visual representation of the removal procedure.
Removing and installing components
53
