Dell OptiPlex 7090 Tower - Installing the 3.5-Inch Hard-Disk Drive Assembly

Steps

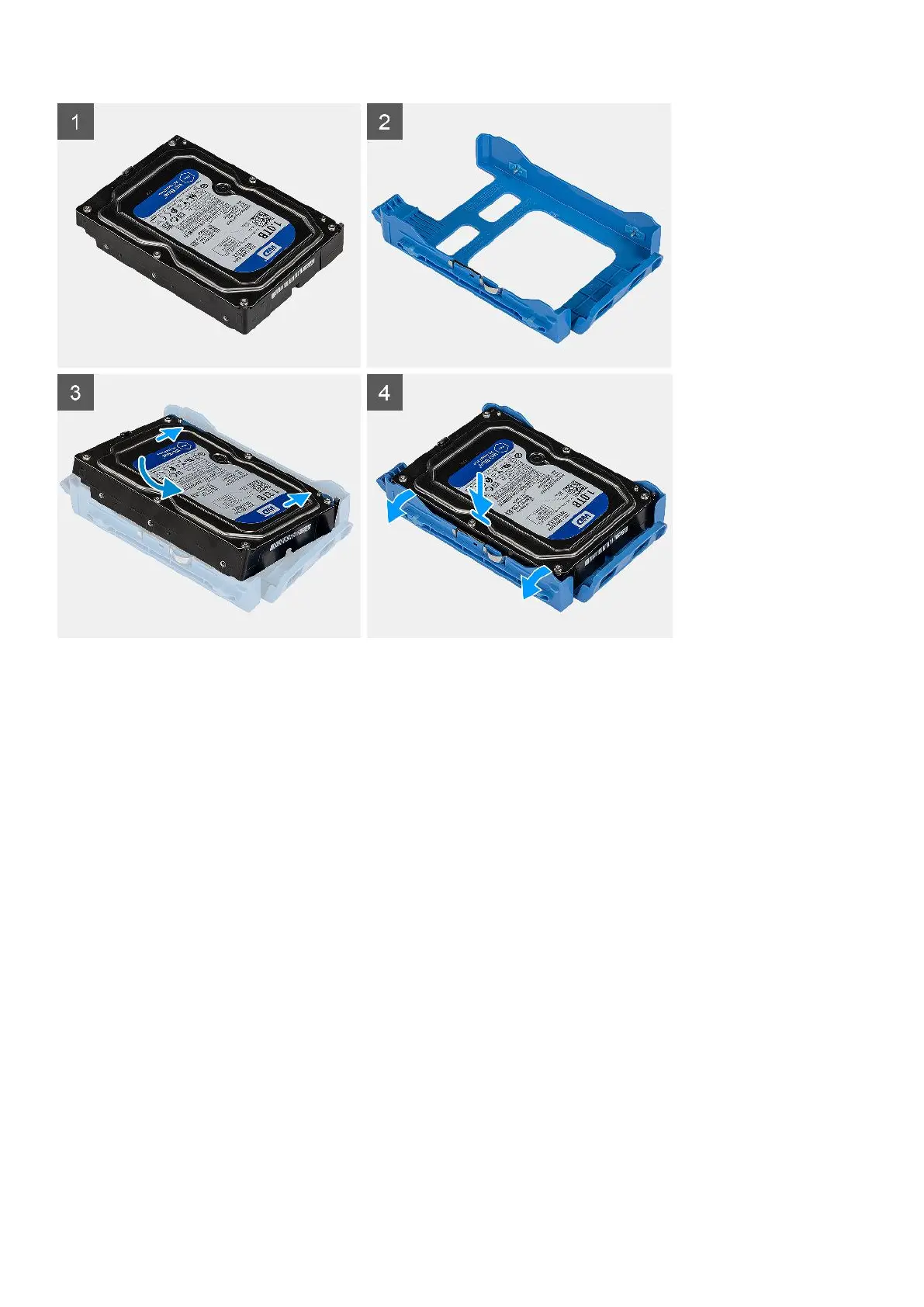

1. Place the hard-disk drive into the hard-disk drive bracket and align the tabs on the bracket with the slots on the hard-disk
drive.
2. Snap the hard-disk drive into the hard-disk drive bracket.
Next steps
1. Install the 3.5-inch hard-disk drive assembly.
2. Install the side cover.
3. Follow the procedure in after working inside your computer.
Installing the 3.5-inch hard-disk drive assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the 3.5-inch hard-disk drive assembly and provides a visual representation of the
installation procedure.
Removing and installing components
25
