Steps

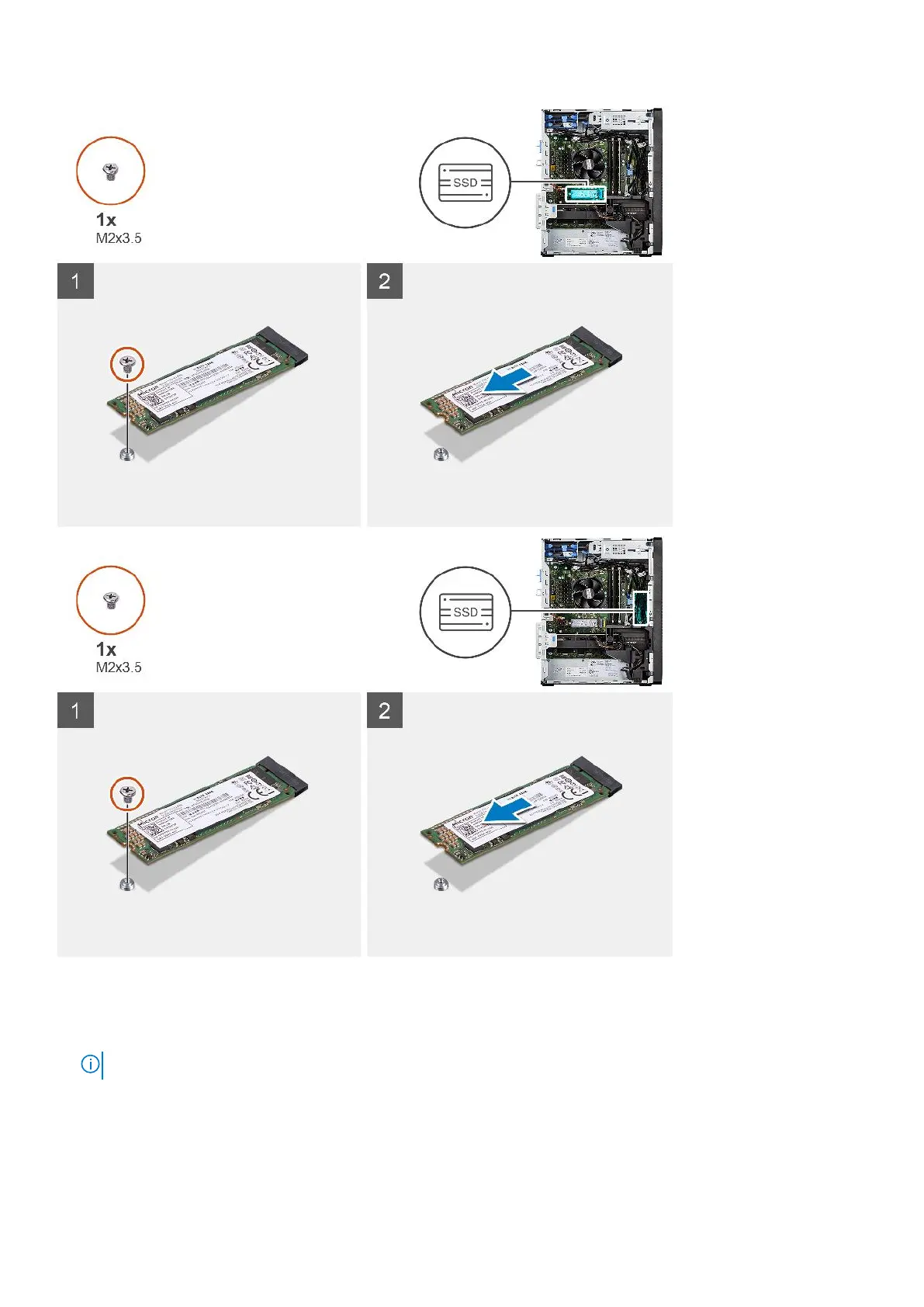

1. Remove the screw (M2x3.5) that secures the solid-state drive to the system board.
2. Slide and lift the solid-state drive off the system board.
NOTE: Repeat the above procedure for removing the other solid-state drive.
28 Removing and installing components
