2. Remove the side cover.
About this task

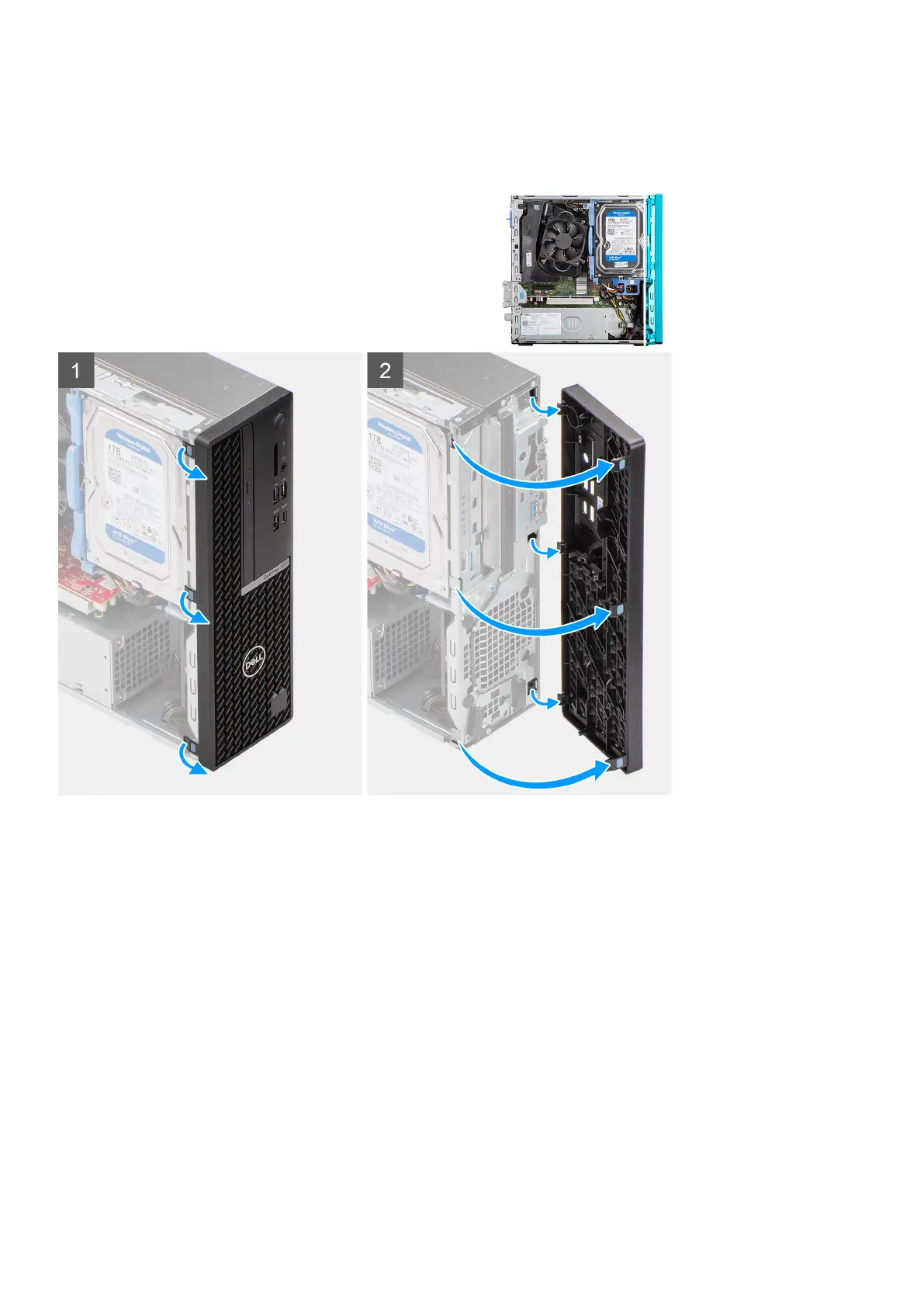

The following images indicate the location of the front bezel and provide a visual representation of the removal procedure.
Steps
1. Pry the retention tabs to release the front bezel from the computer.
2. Slightly pull the front bezel and gently rotate to release the other tabs on the bezel from the slots in the computer chassis.
3. Remove the front bezel from the computer.
Installing the front bezel
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the front bezel and provides a visual representation of the installation procedure.
Removing and installing components
15
