M.2 solid-state drive
Removing the M.2 2230 solid-state drive (slot-1)
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
About this task

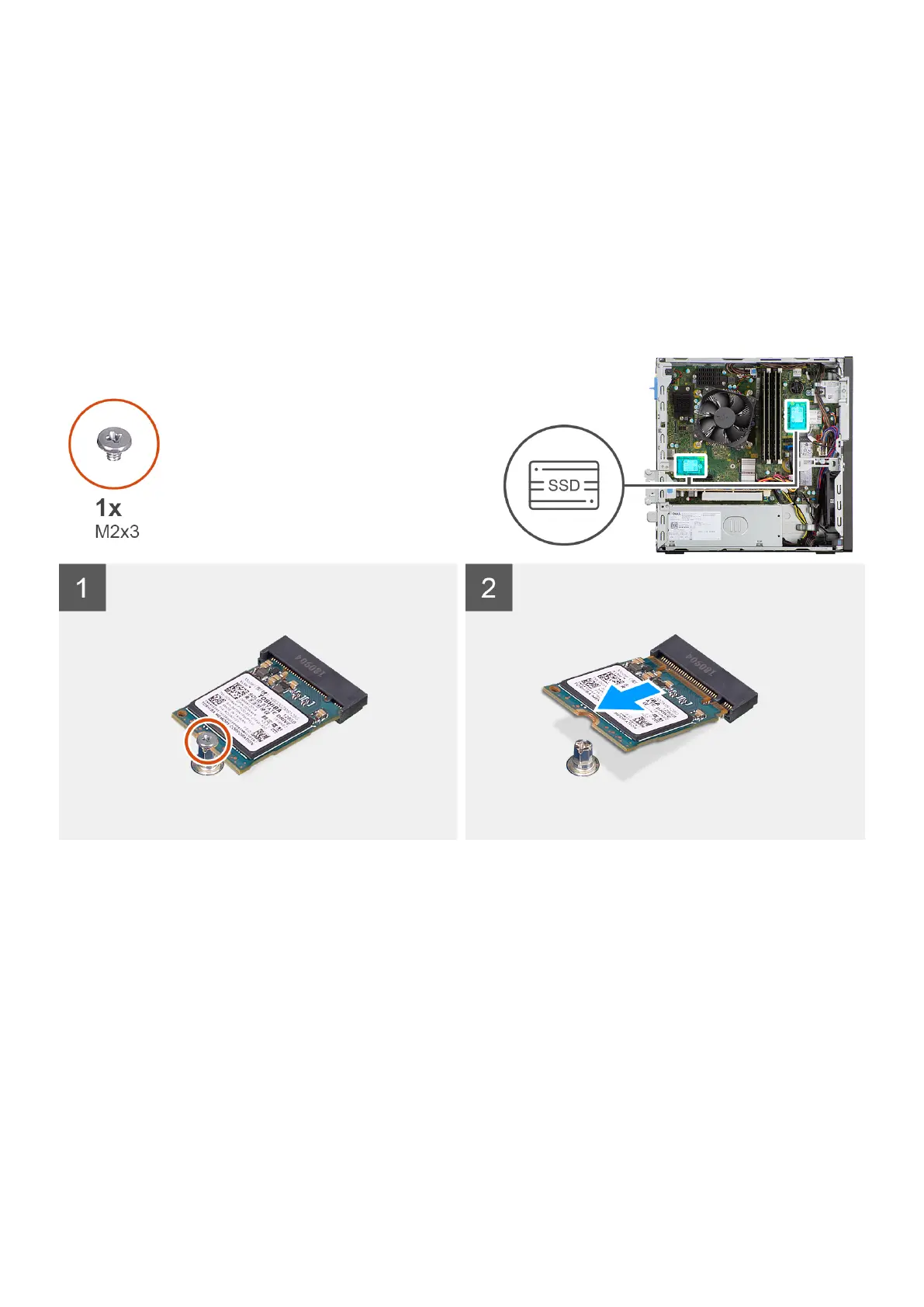

The following images indicate the location of the solid-state drive and provide a visual representation of the removal procedure.
Steps
1. Remove the screw (M2x3) that secures the solid-state drive to the system board.
2. Slide and lift the solid-state drive off the system board.
Installing the M.2 2230 solid-state drive (slot-1)
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the solid-state drive and provides a visual representation of the installation
procedure.
