Steps

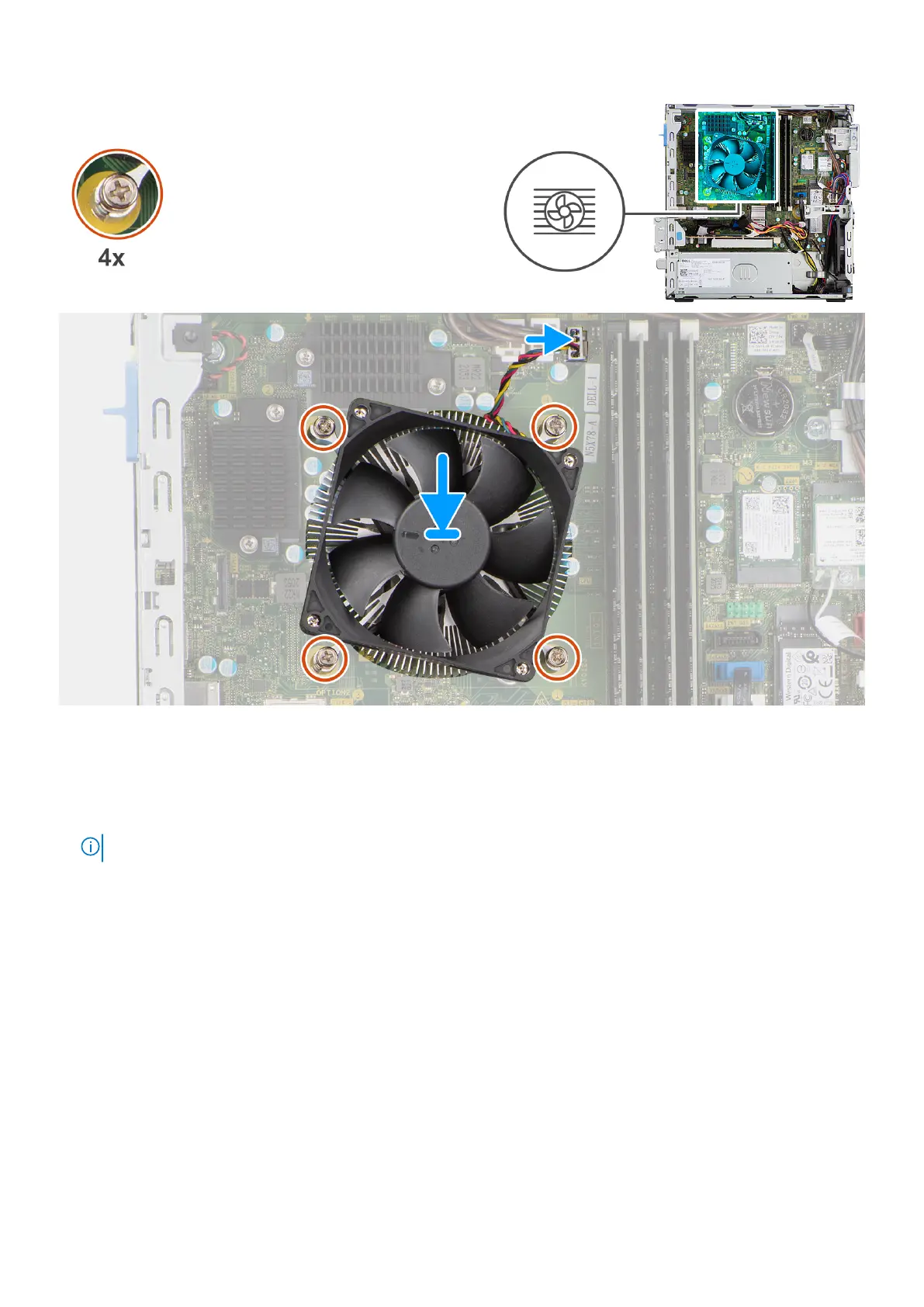

1. Align the screws on the processor fan and heat-sink assembly with the screw holders on the system board and place the
processor fan and heat-sink assembly on the processor.
2. In the sequential order (1->2->3->4), tighten the captive screws to secure the processor fan and heat-sink assembly to the
system board.
NOTE: Tighten the screws in a sequential order (1,2,3,4) as printed on the system board.
3. Connect the processor-fan cable to the connector on the system board.
Next steps
1. Install the front bezel.
2. Install the side cover.
3. Follow the procedure in after working inside your computer.
Processor
Removing the processor
Prerequisites
1. Follow the procedure in before working inside your computer.
Removing and installing components
57
