Installing the speaker
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

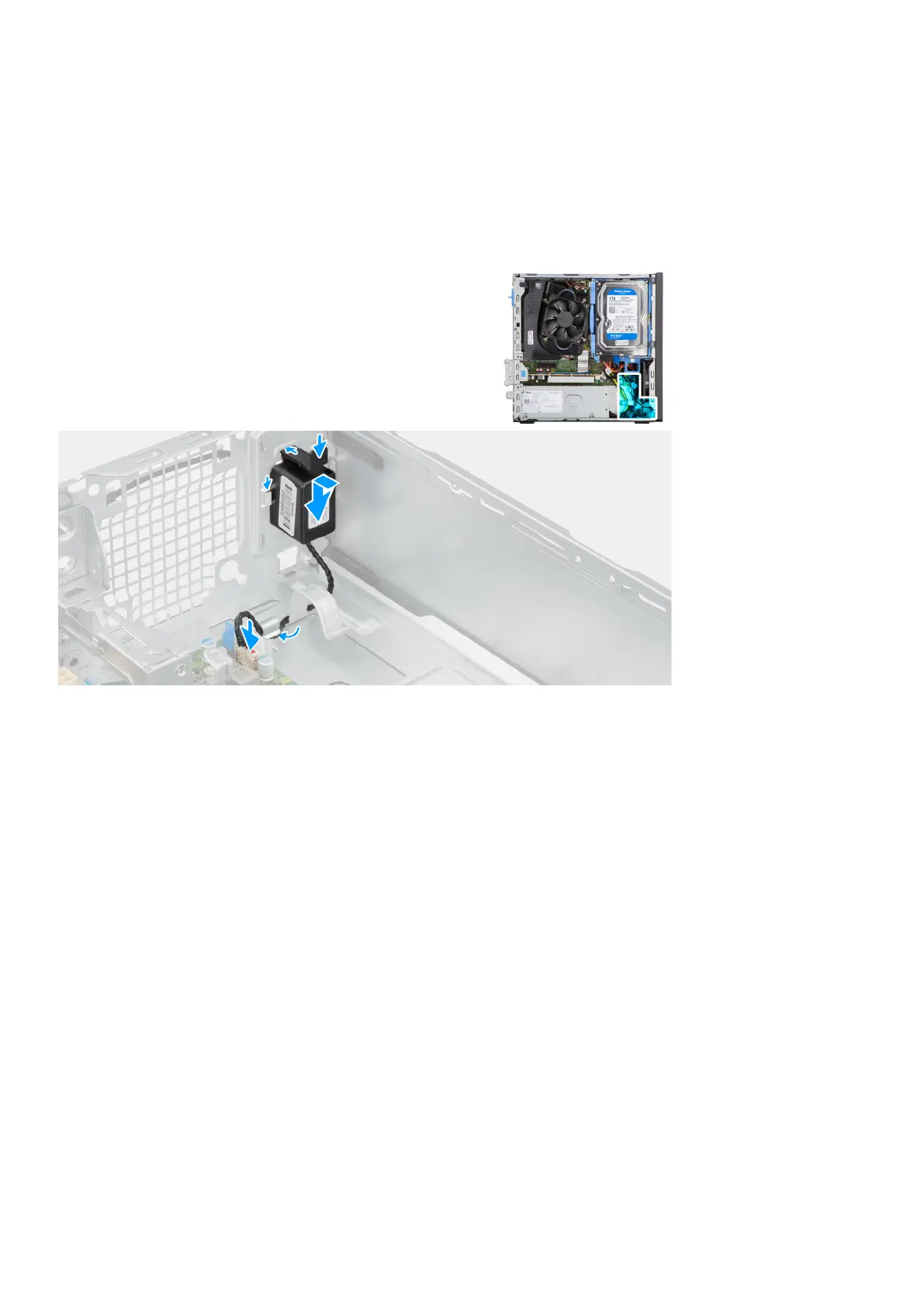

The following image indicates the location of the speaker and provides a visual representation of the installation procedure.
Steps
1. Press the release tab and slide the speaker in the slot on the chassis until it snaps into place.
2. Route the speaker cable through the routing guide on the chassis.
3. Connect the speaker cable to the connector on the system board.
Next steps
1. Install the side cover.
2. Follow the procedure in after working inside your computer.
Processor fan and heat-sink assembly
Removing the processor fan and heat-sink assembly
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
3. Remove the front bezel.
About this task
The following image indicates the location of the processor fan and heat-sink assembly and provide a visual representation of
the removal procedure.
Removing and installing components
55
