Steps
1. Remove the liner behind the VR heat sink module.
2. Align and adhere the VR heat sinks on the system board.

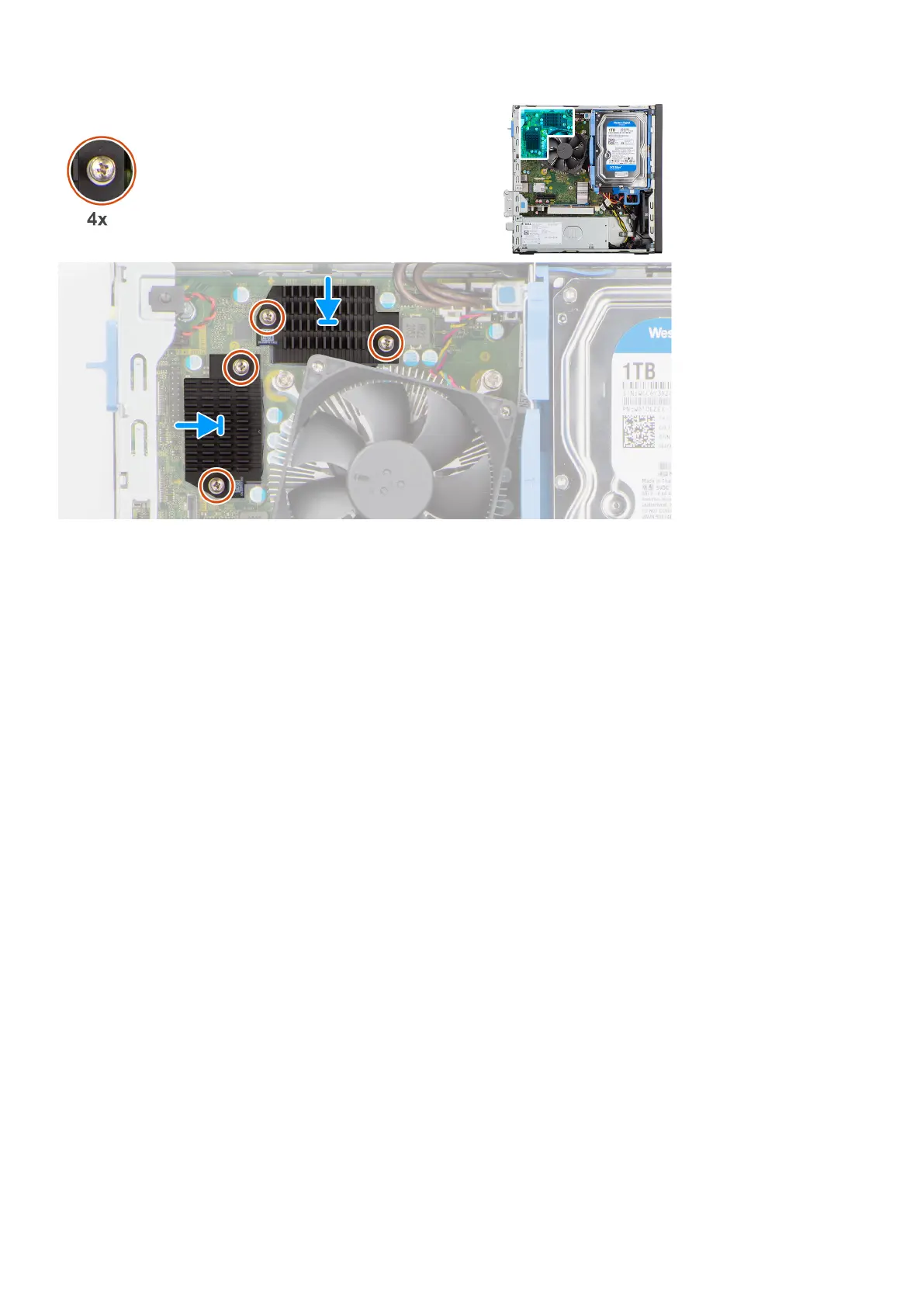

3. Tighten the four captive screws that secure the VR heat sinks to the system board.
Next steps
1. Install the side cover.
2. Follow the procedure in after working inside your computer.
Power button
Removing the power button
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
3. Remove the front bezel.
4. Remove the 2.5-inch hard-drive.
5. Remove the 3.5-inch hard-drive.
6. Remove the hard-drive and optical-drive cage.
About this task
The following images indicate the location of the power button and provide a visual representation of the removal procedure.
Removing and installing components
65
