Steps
1. Disconnect the processor-fan cable from the connector on the system board.
2. In the reverse sequential order (4->3->2->1), loosen the four captive screws that secure the processor fan and heat-sink
assembly to the system board.
3. Lift the processor fan and heat-sink assembly from the system board.
Installing the processor fan and heat-sink assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

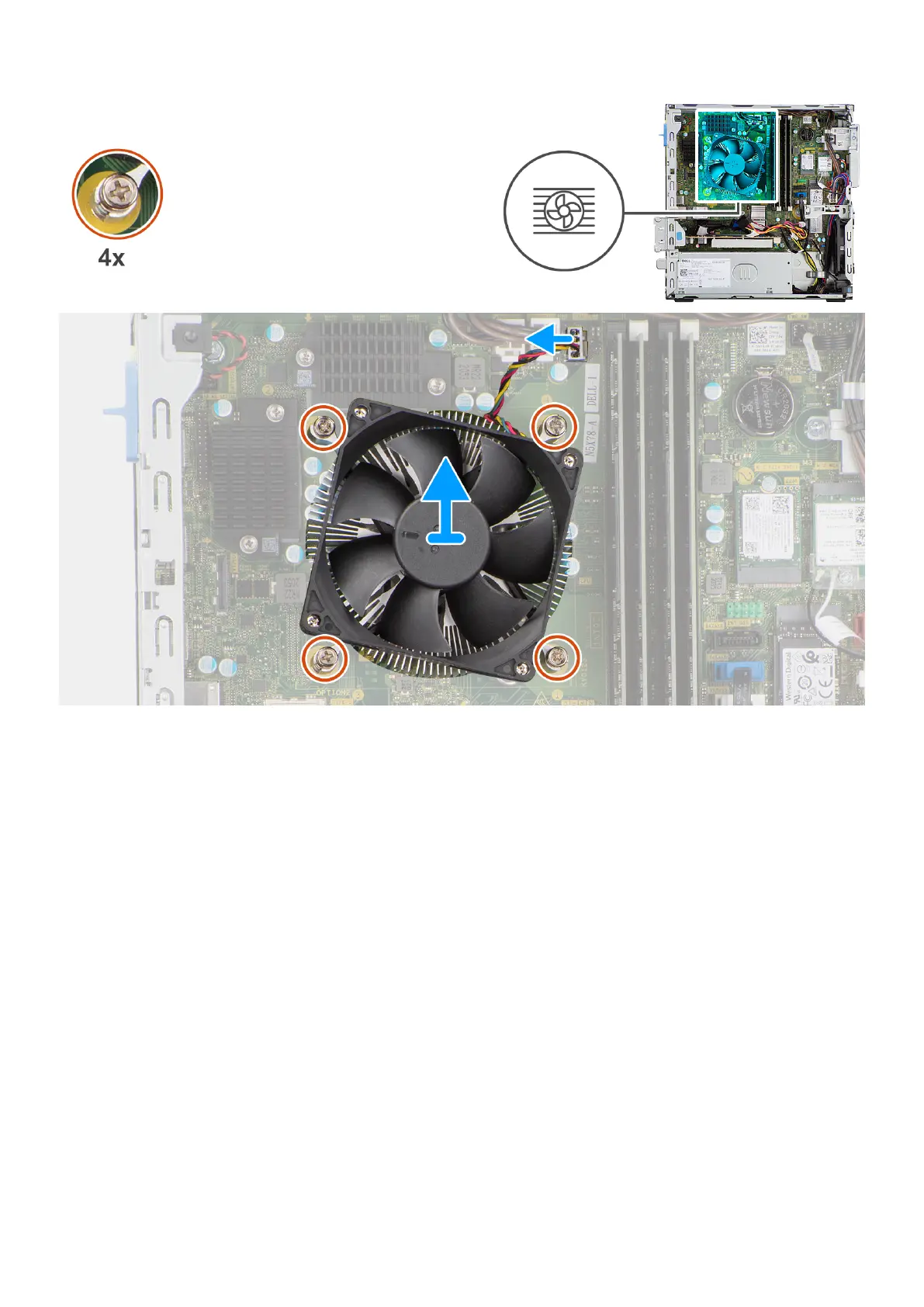

The following image indicates the location of the processor fan and heat-sink assembly and provides a visual representation of
the installation procedure.
