Steps

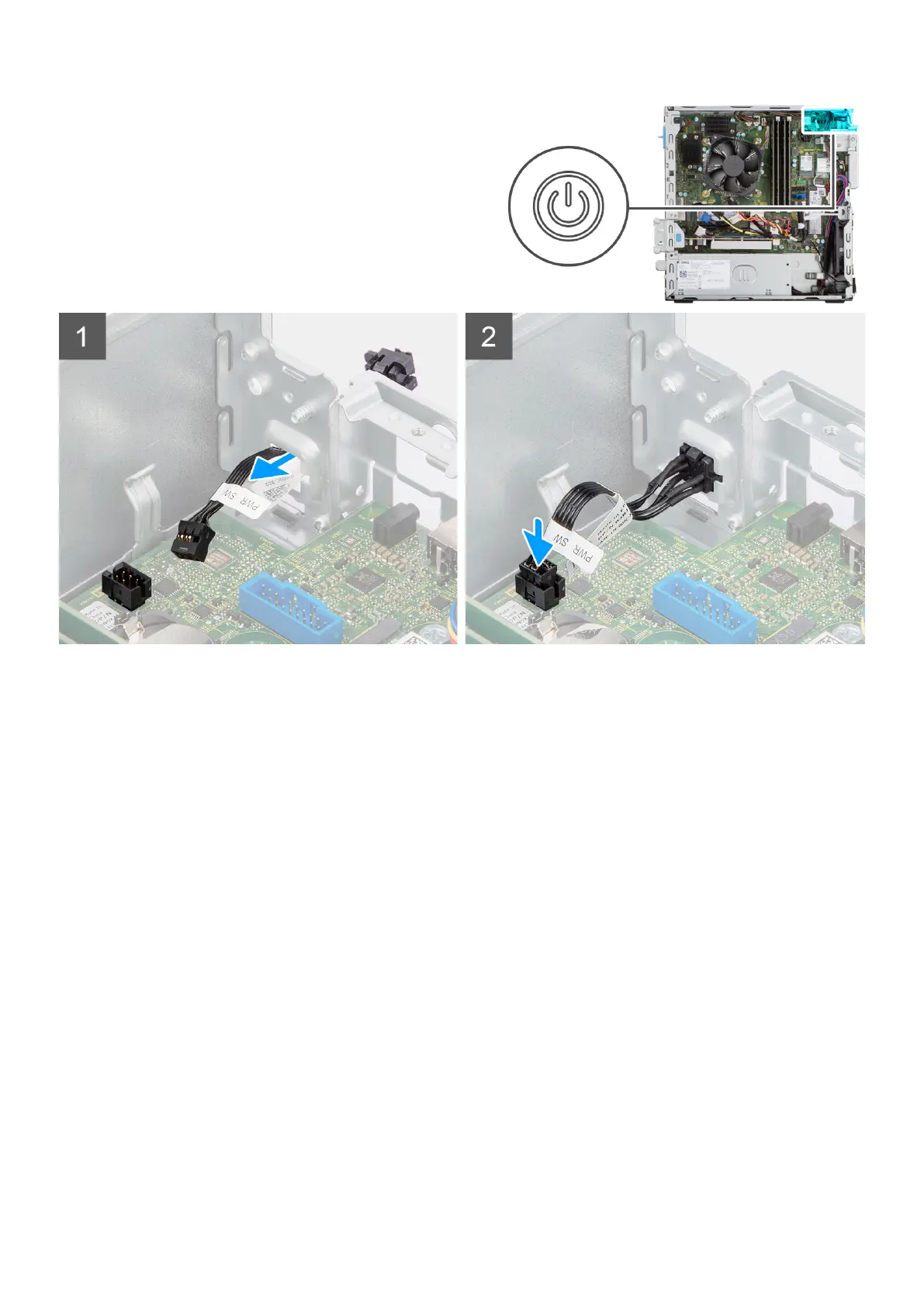

1. Insert the power-button cable into the slot from the front-side of the computer, and press the power-button head until it
clicks into the place in the chassis.
2. Align and connect the power-button cable to the connector on the system board.
Next steps
1. Install the hard-drive and optical-drive cage.
2. Install the 3.5-inch hard-drive.
3. Install the 2.5-inch hard-drive.
4. Install the front bezel.
5. Install the side cover.
6. Follow the procedure in after working inside your computer.
Intrusion switch
Removing the intrusion switch
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
About this task
The following image indicate the location of the intrusion switch and provide a visual representation of the removal procedure.
Removing and installing components
67
