Installing the graphics card
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

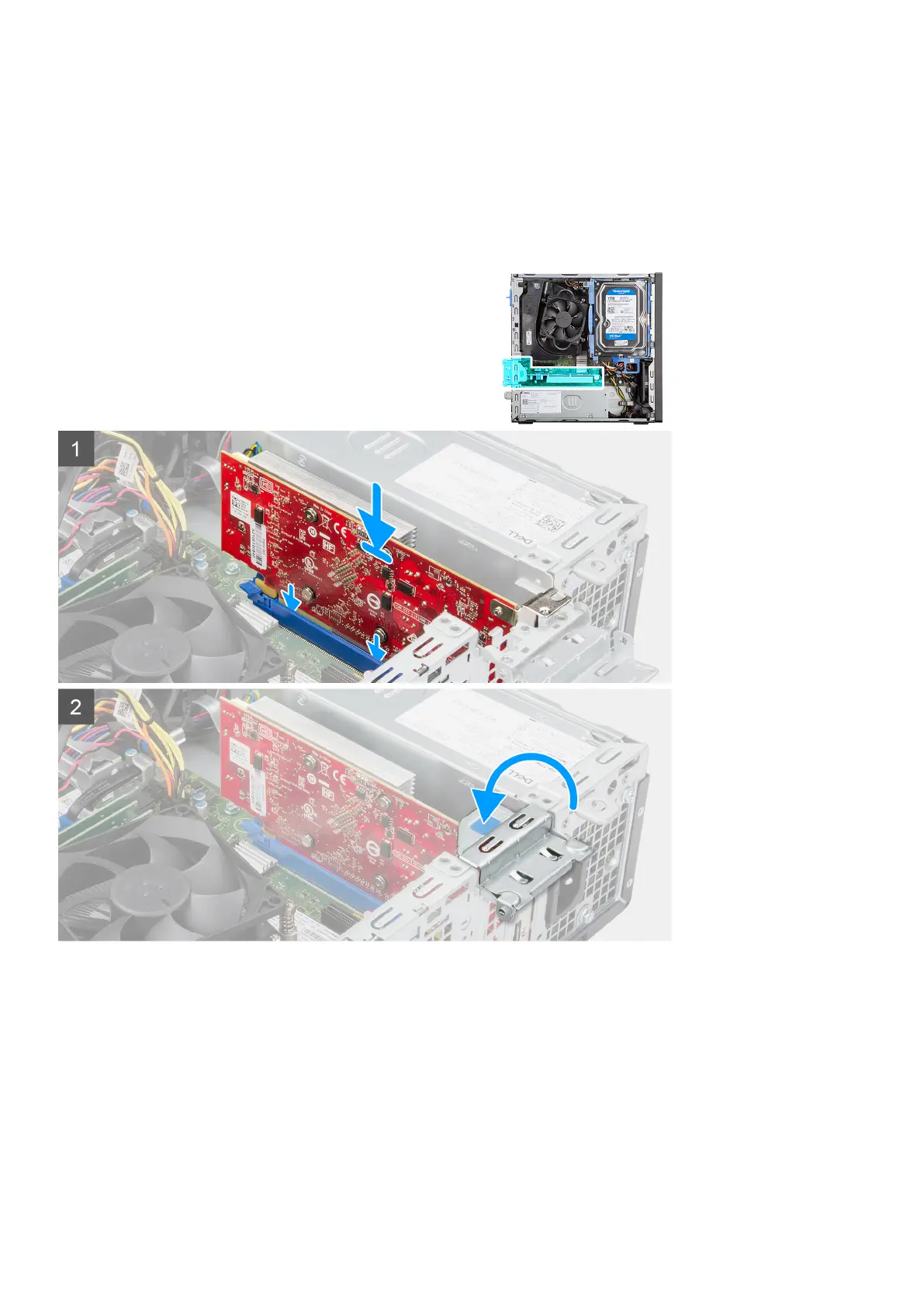

The following image indicates the location of the graphics card and provides a visual representation of the installation procedure.
Steps
1. Align the graphics card with the PCIe slot on the system board.
2. Using the alignment post on the PCIe slot, connect the card in the connector and press down firmly.
3. Ensure that the card is firmly seated.
4. Close the PCIe door.
Next steps
1. Install the side cover.
2. Follow the procedure in after working inside your computer.
44
Removing and installing components
