About this task

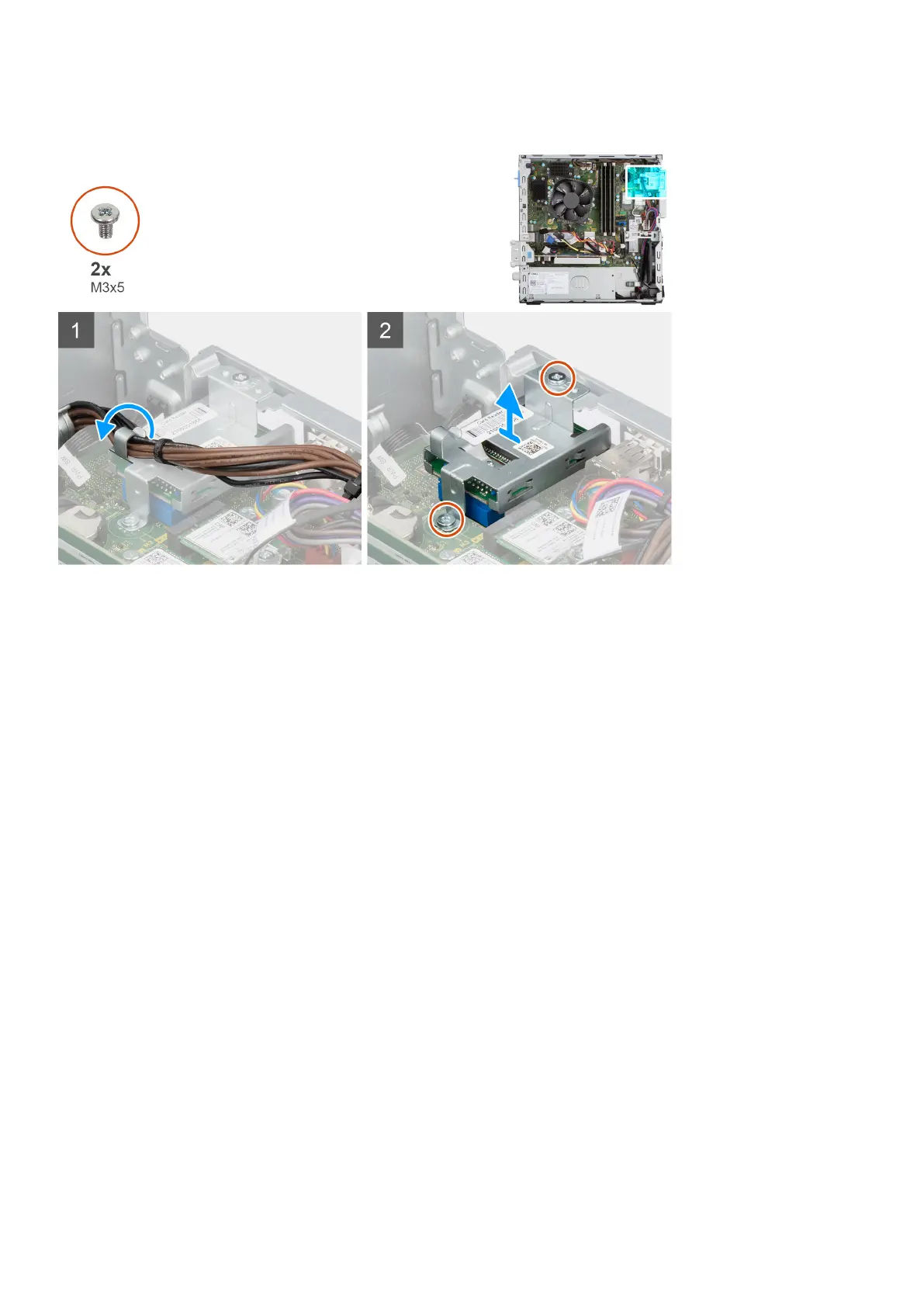

The following images indicate the location of the SD-card reader and provide a visual representation of the removal procedure.
Steps
1. Unroute the PSU cable from the routing guides on the SD-card reader bracket.
2. Remove the two screws (M3x5) that secure the SD-card bracket to the system board and computer.
3. Lift the SD-card reader from the connector on the system board.
Installing the SD-card reader
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the SD-card reader and provides a visual representation of the installation
procedure.
70
Removing and installing components
To Next Page
