About this task

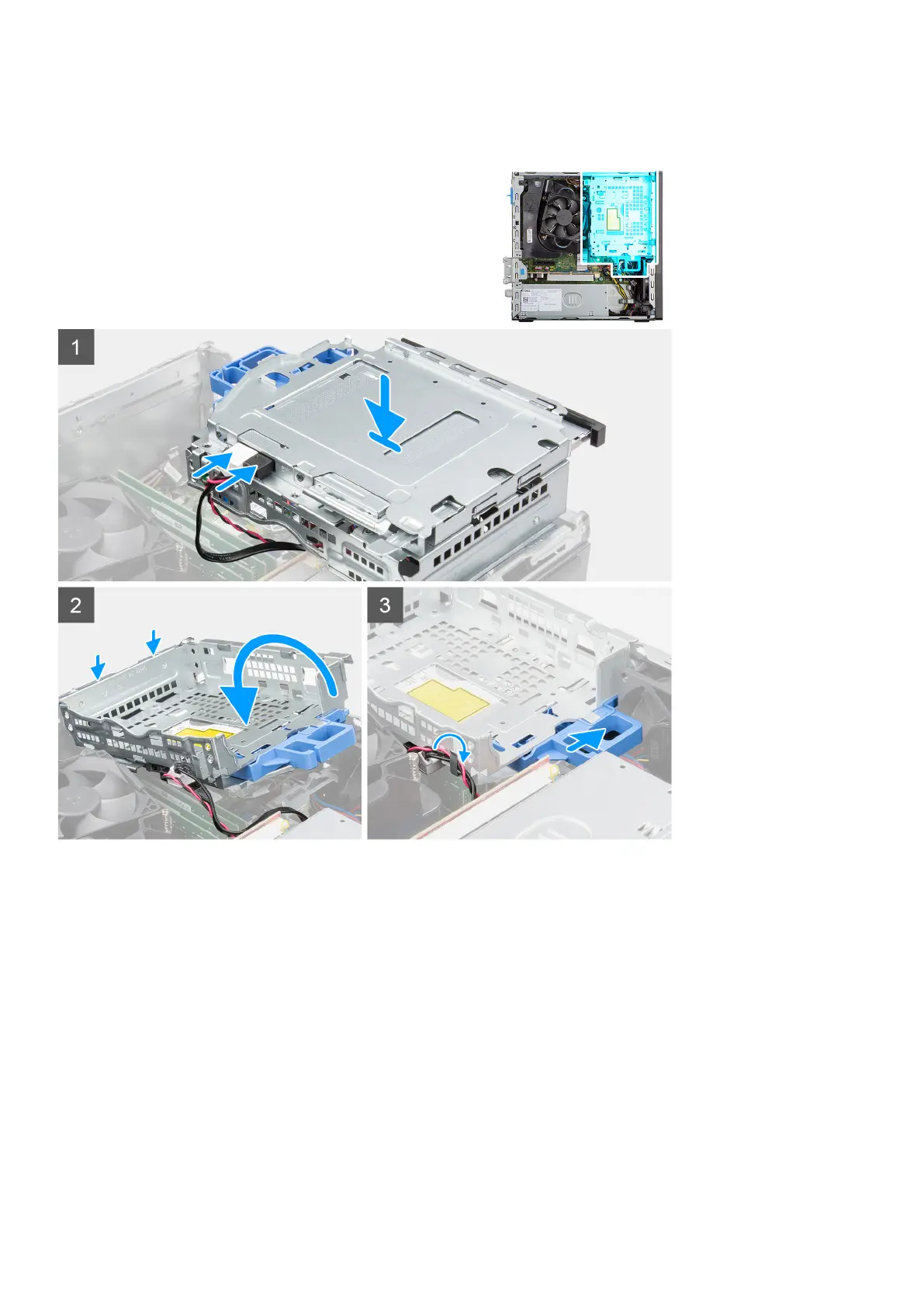

The following image indicates the location of the hard-drive and optical-drive bracket and provides a visual representation of the
installation procedure.
Steps
1. Connect the power and SATA cables to the optical drive while holding the bracket upside down.
2. Hold the bracket upright and align the mounting points with the ones on the chassis.
3. Push the bracket until the assembly is secured onto the chassis.
4. Slide the lock towards the right to lock the bracket in place.
5. Route the optical drive's power and data cables through the routing guide on the bracket.
6. Route the hard-drive power and SATA cables through the routing guide on the lock.
Next steps
1. Install the 3.5-inch hard-drive.
2. Install the 2.5-inch hard-drive.
3. Install the front bezel.
4. Install the side cover.
5. Follow the procedure in after working inside your computer.
