Dell OptiPlex XE4 Small Form Factor User Manual

Steps
1. Align the notch on the SSD with the tab on the solid-state drive connector on the Dell Ultra Speed Drive.
2. Install the standoff nut on the notch of the SSD.
3. Replace the single screw (M2x5) securing the standoff nut to the Dell Ultra Speed Drive.
4. Flip over the Dell Ultra Speed Drive with the SSD facing up.
5. Align the Dell Ultra Speed Drive with the PCIe slot on the system board.

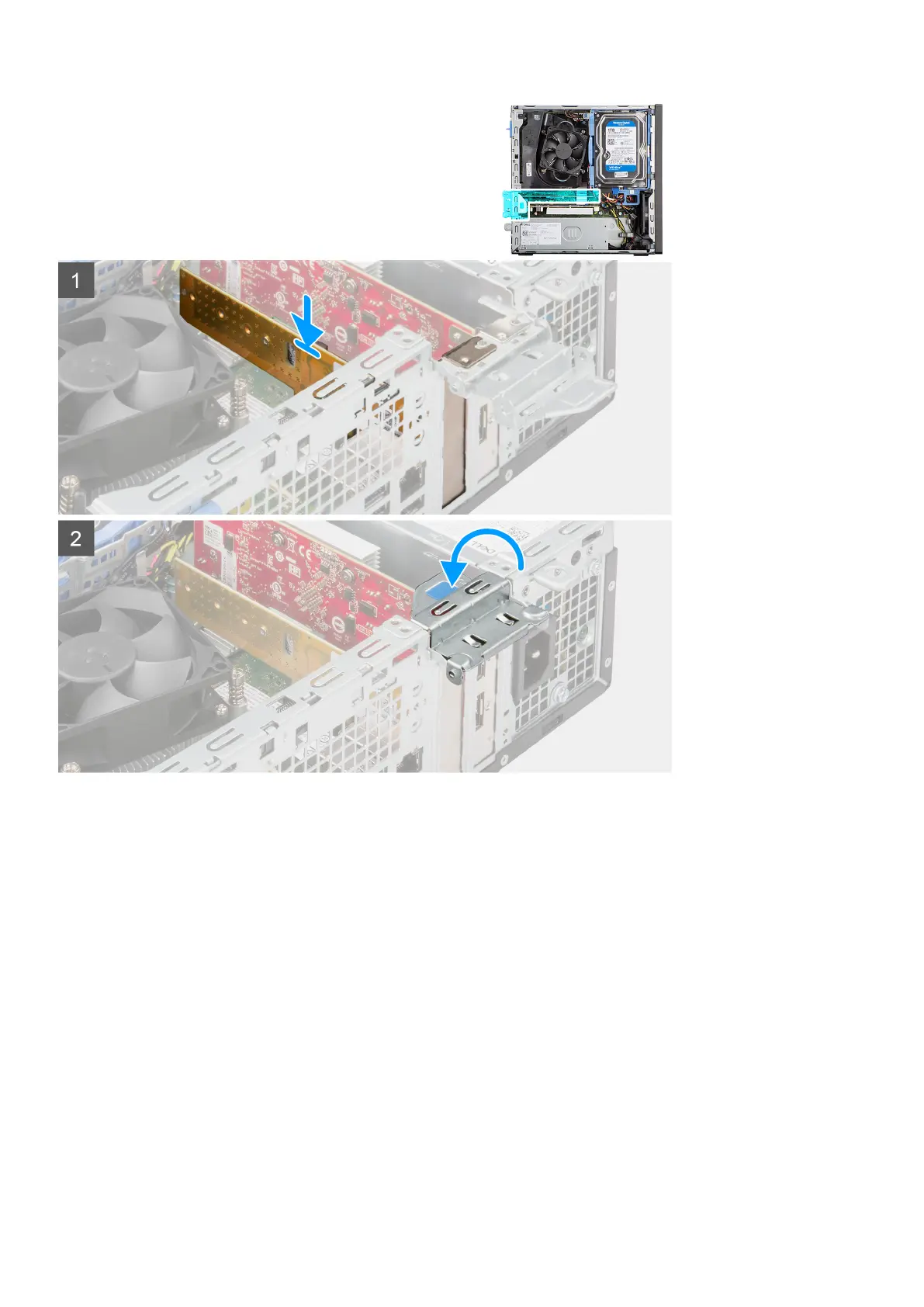

6. Using the alignment post on the PCIe slot, slide the Dell Ultra Speed Drive into the slot on the riser card until it clicks into
place.
7. Close the PCI retainer latch, and press it until it clicks into place.
Next steps
1. Install the side cover.
2. Follow the procedure in after working inside your computer.
Removing and installing components
49
