Dell P09E002 - Replacing the Power-Button Board

48 Power-Button Board
Replacing the Power-Button Board
1 Follow the instructions in "Before You Begin" on page 9.
2 Use the alignment posts to place the power-button board on the palm-rest
assembly.
3 Replace the two screws that secure the power-button board to the
palm-rest assembly.
4 Slide the power-button board cable into the connector on the
power-button board and press down on the connector latch to secure the
cable.
5 Replace the palm-rest assembly (see "Replacing the Palm-Rest Assembly"
on page 40).
6 Replace the optical drive (see "Replacing the Optical Drive" on page 34).
7 Replace the module cover (see "Replacing the Module Cover" on page 16).
8 Replace the battery (see "Replacing the Battery" on page 14).

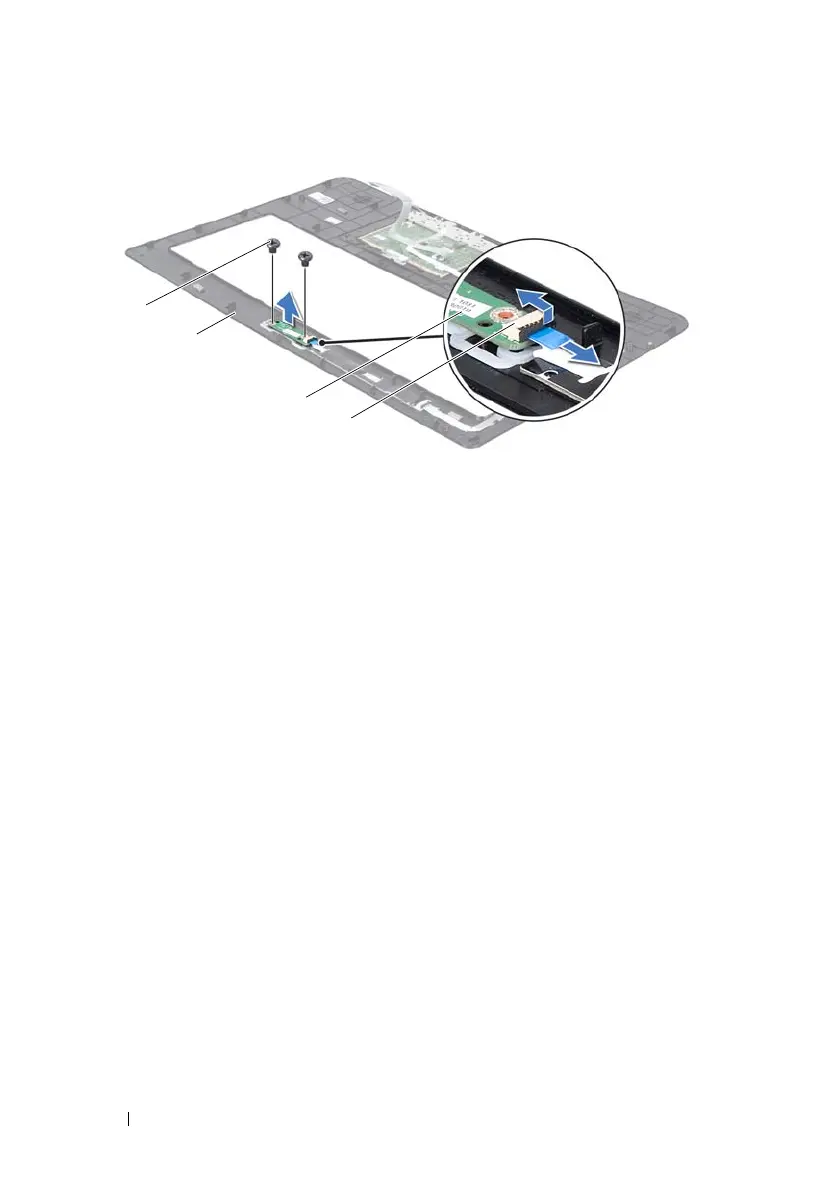

1 screws (2) 2 palm-rest assembly
3 power-button board 4 power-button board cable connector
1
2
4
3
